									- C to V Band Power Amplifier MMICs (Chip)

Sumitomo Electric is providing a full line-up of GaAs power amplifier MMIC chips with output power at 50mW to 3W. These MMICs are designed for VSAT (Very Small Aperture Terminal) and radio link transmitter applications that require high power, high gain and low distortion in a 50Ω system. Sumitomo Electric has a full line-up of MMIC products specified from C-band through V-band.
Features
- Input and Output Internally Matched Zin/Zout = 50Ω
 - High Output Power (Up to 3W)
 - High Gain
 - Low Distortion
 - High Reliability


-

FMM5820X
															 -

EMM5075X
															 -

FMM5715X
															 -

EMM5717X
															 -

EMM5078X

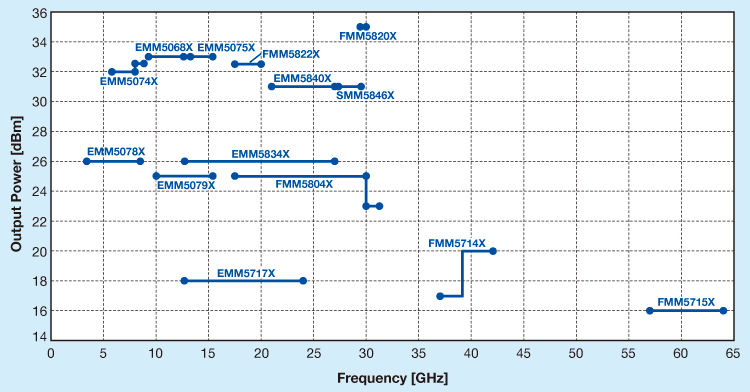

Power Amplifier MMIC Lineup (Chip)

Specifications
Ta=+25°C
| Part Number | Frequency Range f (GHz)  |
																Output Power at 1dB G.C.P. P1dB dBm (Typ.)  |
																Gain at 1dB G.C.P. G1dB dB (Typ.)  |
																3rd. Order Intercept Point OIP3 dBm (Typ.)  |
																Drain-Source Voltage VDD (V)  |
																Drain
																Current at 1dB G.C.P. lDD mA (Typ.)  |
																Function/Application |
|---|---|---|---|---|---|---|---|
| EMM5078X | 3.4-8.5 | 26 | 29 | 35 | 6 | 350 |
																Driver Amp., LO
																Buffer Amp. C-Band VSAT and Radio Link  |

| EMM5074X | 5.8-8.5 | 32 (f=5.8-7.1GHz) 32.5 (f=7.1-8.5GHz)  |
																27 | 41 | 6 | 1450 |
																Power Amp. C-Band VSAT and Radio Link  |

| EMM5068X | 9.5-13.3 | 33 | 25 | 42.5 | 6 | 1500 |
																Power Amp. Radio Link  |

| EMM5079X | 10-15.4 | 25 | 22.5 | 31 (f=10-11.7GHz) 35 (f=11.7-15.4GHz)  |
																6 | 350 |
																Driver Amp., LO
																Buffer Amp. Ku-Band VSAT and Radio Link  |

| EMM5717X | 12.7-24 | 18 | 22 | - | 3 | 180 | |
| EMM5834X | 12.7-27 | 26 | 23 | 32.5 | 6 | 370 | |
| EMM5075X | 12.7-15.4 | 33 | 26 | 43.5 | 6 | 1300 |
																Power Amp. Ku-Band VSAT and Radio Link  |

| FMM5804X | 17.5-31.5 | 25 (f=17.5-30GHz) 23 (f=30-31.5GHz)  |
																18 | - | 6 | 300 |
																Driver Amp. Ka-Band VSAT and Radio Link  |

| FMM5822X | 17.5-20 | 32.5 | 21 | 41 | 6 | 1000 |
																Power Amp. Radio Link  |

| EMM5840X | 21-27 | 31 | 24 | 39 | 6 | 1000 | |
| SMM5846X | 27.5-29.5 | 31 | 19 | 39 | 6 | 1450 | |
| FMM5820X | 29.5-30 | 35 | 23 | - | 7 | 2200 |
																Power Amp. Ka-Band VSAT and Radio Link  |

| FMM5714X | 37-42 | 17(f=37GHz) 20(f=42GHz)  |
																21 |
																26.5(f=37GHz) 29(f=42GHz)  |
																3 | 200 |
																Power Amp. Ku-Bnad VSAT  |

| FMM5715X | 57-64 | 16 | 17 | - | 3 | 150 |
																Power Amp. Radio Link  |

- G.C.P. : Gain Compression Point
