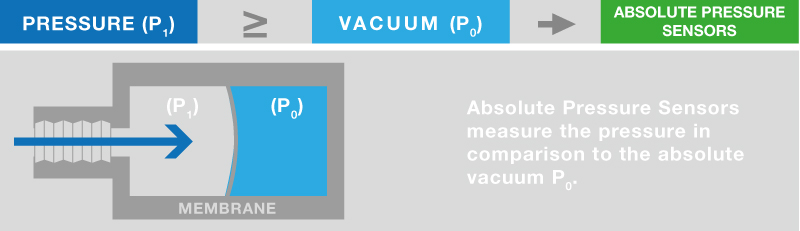

AMSYS Absolute Pressure Sensors
Non calibrated silicon OEM-sensors without amplification
 |
Type |
Pressure Range |
Temperature (°C) |
Sensitivity (mV/V) |
Linearity (%FS) |
|
MS5201 |
0-1bar |
-40..+125 |
58 |
±0.2 |
|
MS5212 |
0-12bar |
-40..+125 |
36 |
±0.2 |
 |
Type |
Pressure Range |
Temperature (°C) |
Sensitivity (mV/V) |
Linearity (%FS) |
|
MS5401 |
0-1bar |
-40..+125 |
58 |
±0.4 |
|
MS5407 |
0-7bar |
-40..+125 |
92 |
±0.4 |
|
MS5412 |
0-12bar |
-40..+125 |
36 |
±0.15 |
 |
Type |
Pressure Range |
Temperature (°C) |
Sensitivity (mV/V) |
Linearity (%FS) |
|
SM5420-015 |
0-15PSI |
-40..+125 |
25 |
±0.2 |
|
SM5420-030 |
0-30PSI |
-40..+125 |
20 |
±0.2 |
|
SM5420-060 |
0-60PSI |
-40..+125 |
20 |
±0.2 |
|
SM5420-100 |
0-100PSI |
-40..+125 |
20 |
±0.2 |
|
Calibrated Silicon OEM-pressure modules with digital
pressure and temperature signal
(Modules are pressure sensors, whose output signals have to be
calculated by an external microprocessor)
 |
Type |
Pressure Range |
Temperature (°C) |
Resolution (mbar) |
Error (mbar)RT |
|
MS5534 |
10-1100mbar |
-40..+125 |
0.1 |
±1.5 |
|
MS5535 |
0-14bar |
-40..+125 |
1.2 |
±25 |
|
MS5535-30 |
0-30bar |
-40..+125 |
3 |
±40 |
 |
Type |
Pressure Range |
Temperature (°C) |
Resolution (mbar) |
Error (mbar)RT |
|
MS5540 |
10-1100mbar |
-40..+85 |
0.1 |
±1.5 |
|
MS5541 |
0-14bar |
-40..+85 |
1.2 |
±30 |
|
MS5541-30 |
0-30bar |
-40..+85 |
3 |
±50 |
|
MS5803-01 |
10-1300mbar |
-40..+85 |
0.012 |
±1.5 |
|
MS5803-02 |
300-2000mbar |
-40..+85 |
0.024 |
±1.5 |
|
MS5803-05 |
0-5bar |
-40..+85 |
0.036 |
±4.5 |
|
MS5803-14 |
0-14bar |
-40..+85 |
0.15 |
±20 |
|
MS5803-30 |
0-30bar |
-40..+85 |
0.36 |
±50 |
 |
Type |
Pressure Range |
Temperature (°C) |
Resolution (mbar) |
Error (mbar)RT |
|
MS5805-02 |
10-2000mbar |
-40..+85 |
0.02 |
±2.0 |
 |
Type |
Pressure Range |
Temperature (°C) |
Resolution (mbar) |
Error (mbar)RT |
|
MS5806-02 |
10-2000mbar |
-40..+85 |
0.024 |
±1.5 |
 |
Type |
Pressure Range |
Temperature (°C) |
Resolution (mbar) |
Error (mbar)RT |
|
MS5561 |
10-1100mbar |
-40..+85 |
0.1 |
±1.5 |
 |
Type |
Pressure Range |
Temperature (°C) |
Resolution (mbar) |
Error (mbar)RT |
|
MS5607-02BA03 |
10-1200mbar |
-40..+85 |
0.024 |
±1.5 |
|
MS5611-02BA03 |
10-1200mbar |
-40..+85 |
0.012 |
±1.5 |
|
Calibrated silicon OEM-pressure sensors with analog/digital
pressure and temperature signal
 |
Type |
Pressure Range |
Temperature (°C) |
Resolution (%FS) |
Error (%FS)RT |
|
AMS 5915-1000 |
0-1bar |
-5..+85 |
0.05 |
±0.5 |
|
Calibrated silicon OEM-pressure sensors with analog/digital
pressure and temperature signal
|
|
Type |
Pressure Range |
Temperature (°C) |
Resolution (%FS) |
Error (%FS)RT |
|
AMS 5812-0150 |
0-15PSI |
-25..+85 |
0.05 |
±0.5 |
|
AMS 5812-0300 |
0-30PSI |
-25..+85 |
0.05 |
±0.5 |
|
Calibrated silicon OEM-pressure sensors with analog/digital
pressure signal
 |
Type |
Pressure Range |
Temperature (°C) |
Resolution (%FS) |
Error (%FS)RT |
|
SM5822-015 |
0-15PSI |
-40..+125 |
0.05 |
±3 |
|
SM5822-060 |
0-60PSI |
-40..+125 |
0.05 |
±3 |
|
Calibrated OEM-pressure sensor with analog and switching
output
|
|
Type |
Pressure Range |
Temperature (°C) |
Resolution (%FS) |
Error (%FS)RT |
|
AMS 5105-1000 |
0-1bar |
-25..+85 |
0.05 |
±0.5 |
|
AMS 5105-2000
|
0-2bar |
-25..+85 |
0.05 |
±0.5 |
|
Calibrated ceramic OEM-pressure sensors with analog output
 |
Type |
Pressure Range |
Temperature (°C) |
Accuracy @RT(FS) |
Error (%FS)RT |
|
ME707-001 |
0-1bar |
-25..+125 |
±1 |
±1.1 |
|
ME707-002 |
0-2bar |
-25..+125 |
±1 |
±1.1 |
|
ME707-005 |
0-5bar |
-25..+125 |
±1 |
±1.1 |
|
ME707-010 |
0-10bar |
-25..+125 |
±1 |
±1.1 |
|
ME707-020 |
0-20bar |
-25..+125 |
±1 |
±1.1 |
|
ME707-050 |
0-50bar |
-25..+125 |
±1 |
±1.1 |
 |
Type |
Pressure Range |
Temperature (°C) |
Accuracy @RT(FS) |
Error (%FS)RT |
|
ME77x-001 |
0-1bar |
-25..+125 |
< ±1 |
±1 |
|
ME77x-002 |
0-2bar |
-25..+125 |
< ±1 |
±1 |
|
ME77x-005 |
0-5bar |
-25..+125 |
< ±1 |
±1 |
|
ME77x-010 |
0-10bar |
-25..+125 |
< ±1 |
±1 |
|
ME77x-020 |
0-20bar |
-25..+125 |
< ±1 |
±1 |
|
ME77x-050 |
0-50bar |
-25..+125 |
< ±1 |
±1 |
|
Ready-to-Use Pressure transmitter
 |
Type |
Pressure Range |
Temperature (°C) |
Accuracy @RT (FS) |
Error (%FS)RT |
|
U5100-015 |
0-15PSI |
-40..+125 |
±0.1 |
±0.35 |
|
U5100-030 |
0-30PSI |
-40..+125 |
±0.1 |
±0.35 |
|
U5100-050 |
0-50PSI |
-40..+125 |
±0.1 |
±0.35 |
|
U5100-100 |
0-100PSI |
-40..+125 |
±0.1 |
±0.35 |
|
U5100-200 |
0-200PSI |
-40..+125 |
±0.1 |
±0.35 |
|
U5100-300 |
0-300PSI |
-40..+125 |
±0.1 |
±0.35 |
|
U5100-500 |
0-500PSI |
-40..+125 |
±0.1 |
±0.35 |
|
U5100-01K |
0-1000PSI |
-40..+125 |
±0.1 |
±0.35 |
|
U5100-1K5 |
0-1500PSI |
-40..+125 |
±0.1 |
±0.35 |
|
U5100-03K |
0-3000PSI |
-40..+125 |
±0.1 |
±0.35 |
|
U5100-05K |
0-5000PSI |
-40..+125 |
±0.1 |
±0.35 |
|
U5100-10K |
0-10000PSI |
-40..+125 |
±0.1 |
±0.35 |
|
|

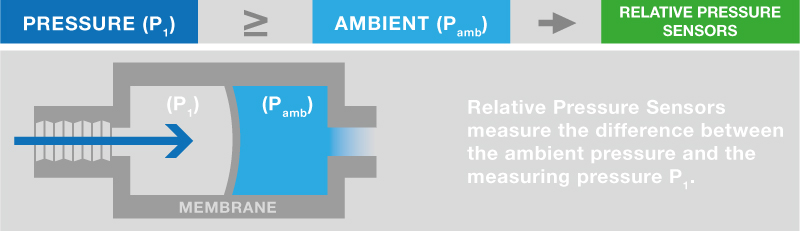

AMSYS Relative Pressure Sensors
Non calibrated silicon OEM-sensors without amplification
 |
Type |
Pressure Range |
Temperature (°C) |
Sensitivity (mV/V) |
Linearity (%FS) |
|
MS5201 |
0-1bar |
-40..+125 |
58 |
±0.2 |
 |
Type |
Pressure Range |
Temperature (°C) |
Sensitivity (mV/V) |
Linearity (%FS) |
|
SM5470-001 |
0-0.15PSI |
-40..+85 |
10 |
±0.3 |
|
SM5470-003 |
0-0.30PSI |
-40..+85 |
10 |
±0.3 |
|
SM5470-008 |
0-0.80PSI |
-40..+85 |
10 |
±0.3 |
|
SM5470-015 |
0-1.50PSI |
-40..+85 |
10 |
±0.3 |
|
SM5470-030 |
0-3.00PSI |
-40..+85 |
10 |
±0.3 |
|
Calibrated Silicon OEM-pressure modules with digital
pressure and temperature signal
(Modules are pressure sensors, whose output signals have to be
calculated by an external microprocessor)
 |
Type |
Pressure Range |
Temperature (°C) |
Resolution (mbar) |
Error (mbar)RT |
|
MS5536-NJU |
-1000-400mbar |
-40..+85 |
0.1 |
±2.5 |
|
MS5536-PJU |
-400-1000mbar |
-40..+85 |
0.1 |
±2.5 |
|
MS5536-60 |
0-60mbar |
-40..+85 |
0.05 |
±0.5 |
|
Calibrated Silicon OEM-pressure modules with digital
pressure and temperature signal
 |
Type |
Pressure Range |
Temperature (°C) |
Resolution (mbar) |
Error (mbar)RT |
|
MS1620 |
-66-400mbar |
5..+45 |
1% |
±2.8 |
 |
Type |
Pressure Range |
Temperature (°C) |
Resolution (mbar) |
Error (mbar)RT |
|
MS1630 |
-66-400mbar |
5..+45 |
1% |
±2.8 |
|
Calibrated silicon OEM-pressure sensors with analog/digital
pressure and temperature signal
|
Calibrated silicon OEM-pressure sensors with analog/digital
pressure and temperature signal
|
Calibrated silicon pressure sensors with analog/digital
pressure signal
|
|
Type |
Pressure Range |
Temperature (°C) |
Resolution (%FS) |
Error (%FS)RT |
|
SM5822 |
0-15PSI |
-40..+125 |
0.05 |
±1 |
|
SM5822-006 |
0-0.60PSI |
-40..+125 |
0.05 |
±1 |
|
SM5822-015 |
0-1.50PSI |
-40..+125 |
0.05 |
±1 |
|
Calibrated OEM-pressure sensor with analog and switching
output
|
Calibrated ceramic OEM-pressure sensors with analog output
|
Ready-to-Use Pressure transmitter
|
|

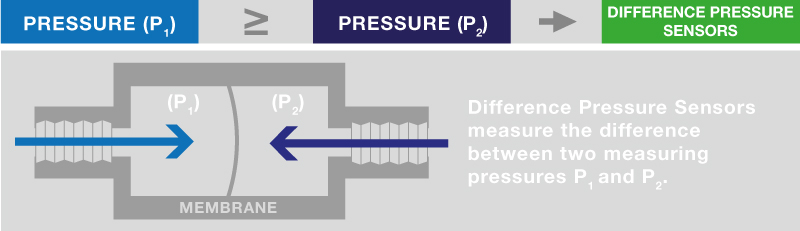

AMSYS Differential Pressure Sensors
Non calibrated silicon OEM-pressure sensors without
amplification
|
|
Type |
Pressure Range |
Temp. (°C) |
Sensitivity (mV/V) |
Linearity (%FS) |
|
SM5470-001 |
0-0.15PSI |
-40..+85 |
10 |
±0.3 |
|
SM5470-003 |
0-0.30PSI |
-40..+85 |
10 |
±0.3 |
|
SM5470-008 |
0-0.80PSI |
-40..+85 |
10 |
±0.3 |
|
SM5470-015 |
0-1.50PSI |
-40..+85 |
10 |
±0.3 |
|
SM5470-030 |
0-3.00PSI |
-40..+85 |
10 |
±0.3 |
|
Calibrated silicon OEM-pressure sensors without
amplification
 |
Type |
Pressure Range |
Temperature (°C) |
Sensitivity (mV/mA) |
Linearity (%FS) |
|
SM5651-001 |
0-0.15PSI |
-40..+125 |
15 |
±0.25 |
|
SM5651-003 |
0-0.30PSI |
-40..+125 |
15 |
±0.5 |
|
SM5651-015 |
0-1.50PSI |
-40..+125 |
15 |
±0.5 |
| Type |
Pressure Range |
Temperature (°C) |
Sensitivity (mV/V) |
Linearity (%FS) |
|
SM5652-001 |
0-0.15PSI |
-40..+125 |
5.1 |
±0.3 |
|
SM5652-003 |
0-0.30PSI |
-40..+125 |
5.1 |
±0.3 |
|
SM5652-008 |
0-0.80PSI |
-40..+125 |
5.1 |
±0.3 |
|
SM5652-015 |
0-1.50PSI |
-40..+125 |
5.1 |
±0.3 |
|
Calibrated silicon OEM-pressure sensors with analog/digital
pressure and temperature signal
|
Calibrated silicon OEM-pressure sensors with analog/digital
pressure and temperature signal
|
Calibrated silicon OEM-pressure sensors with analog/digital
pressure signal
|
|
Type |
Pressure Range |
Temperature (°C) |
Resolution (%FS) |
Error (%FS)RT |
|
SM5822 |
0-15PSI |
-40..+125 |
0.05 |
±3 |
|
SM5822-006 |
0-0.60PSI |
-40..+125 |
0.05 |
±3 |
|
SM5822-015 |
0-1.5PSI |
-40..+125 |
0.05 |
±3 |
|
Calibrated pressure sensor with analog and switching output
|
Ready-to-Use Pressure transmitter
|
|

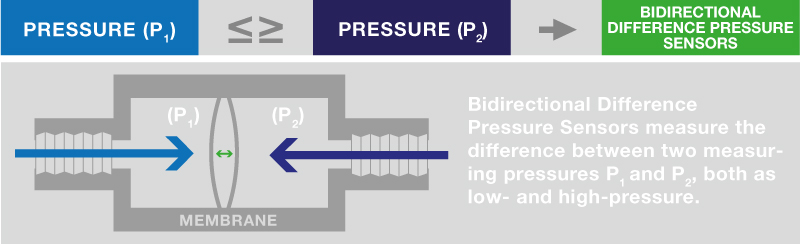

AMSYS Bidirectional Difference Pressure Sensors
Calibrated silicon OEM-pressure sensors with analog/digital
pressure and temperature signal
|
Calibrated silicon OEM-pressure sensors with analog/digital
pressure and temperature signal
|
Calibrated silicon pressure sensors with analog/digital
pressure signal
|
Calibrated OEM-pressure sensor with analog and switching
output
|
Ready-to-Use Pressure transmitter
|
|
AMSYS Barometric Sensors
Calibrated Silicon pressure modules with digital pressure
and temperature signal

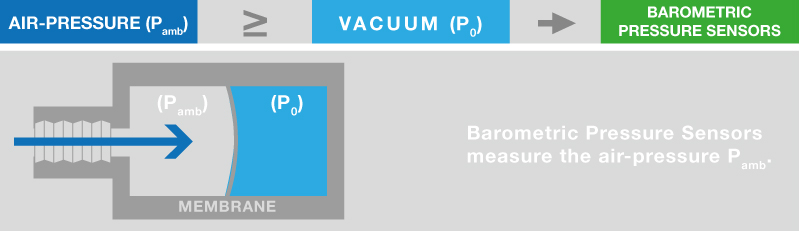

Comparison of pressure sensor modules for barometric
applications
(Modules are pressure sensors, whose output signals have to be
calculated by an external microprocessor)
|
|
Type |
Pressure Range |
Temperature (°C) |
Resolution (mbar) |
Error (mbar)RT |
|
MS5534 |
10-1100mbar |
-40..+125 |
0.1 |
±1.5 |
|
|
Type |
Pressure Range |
Temperature (°C) |
Resolution (mbar) |
Error (mbar)RT |
|
MS5540 |
10-1100mbar |
-40..+85 |
0.1 |
±1.5 |
|
MS5803-01 |
10-1300mbar |
-40..+85 |
0.012 |
±1.5 |
|
MS5803-02 |
10-2000mbar |
-40..+85 |
0.024 |
±1.5 |
|
|
Type |
Pressure Range |
Temperature (°C) |
Resolution (mbar) |
Error (mbar)RT |
|
MS5805-02 |
10-2000mbar |
-40..+85 |
0.02 |
±2.0 |
|
|
Type |
Pressure Range |
Temperature (°C) |
Resolution (mbar) |
Error (mbar)RT |
|
MS5806-02 |
10-2000mbar |
-40..+85 |
0.024 |
±1.5 |
|
|
Type |
Pressure Range |
Temperature (°C) |
Resolution (mbar) |
Error (mbar)RT |
|
MS5561 |
10-1100mbar |
-40..+85 |
0.1 |
±1.5 |
|
|
Type |
Pressure Range |
Temperature (°C) |
Resolution (mbar) |
Error (mbar)RT |
|
MS5607-02BA03 |
10-1200mbar |
-40..+85 |
0.024 |
±1.5 |
|
MS5611-02BA03 |
10-1200mbar |
-40..+85 |
0.012 |
±1.5 |
|
Calibrated silicon pressure sensors with digital pressure
and temperature signal
|
|
Type |
Pressure Range |
Temperature (°C) |
Resolution (%FS) |
Error (%FS)RT |
|
AMS 5915-1200 |
750-1200mbar |
-25..+85 |
0.05 |
±0.5 |
|
Calibrated silicon OEM-pressure sensors with analog/digital
pressure and temperature signal
|
|
Type |
Pressure Range |
Temperature (°C) |
Resolution (%FS) |
Error (%FS)RT |
|
AMS 5812-0150 |
11-17.5PSI |
-25..+85 |
0.05 |
±0.5 |
|
Calibrated pressure sensor with analog and switching output
|
|
Type |
Pressure Range |
Temperature (°C) |
Resolution (%FS) |
Error (%FS)RT |
|
AMS 5105-1200 |
750-1200mbar |
-25..+85 |
0.05 |
±0.5 |
|
Ready-to-Use Pressure transmitter
 |
Type |
Pressure Range |
Temperature (°C) |
Resolution (%FS) |
Error (%FS)RT |
|
AMS 4711-1200 |
0.7-1.2bar |
-25..+85 |
0.05 |
±0.5 |
|
AMS 4712-1200 |
0.7-1.2bar |
-25..+85 |
0.05 |
±0.5 |
|
|
Customized Standard Sensors
Besides
distribution products
AMSYS
offers also pressure sensors, which have been developed in close
cooperation with Analog Microelectronics. This enables
AMSYS
to provide optimized solutions and modification of existing
products to the customers.
Modification of AMSYS-Pressure Sensors
|
AMSYS
AMSYS is able to modify all pressure sensors, whose
identification number starts with AMS (i.e. AMS 4712, AMS 5812,
etc.) according to the customer requirements and within the
design features. In detail the following modifications are
practicable:
- Modification of output signals – analog: voltage and
current – digital: I²C, PWM
- Design of the cabinet
- Current consumption
- Configuration of the circuit points
- Pressure calibration for values, which are not
classified in the specifications
- Adjustment of temperature coefficients according to an
predefined temperature range
|
 |
|
|
| |
更多产品请看本公司产品专用销售网站:
SSTKJ中国传感器科技信息网：http://www.sensor-ic.com/
SSTKJ工控安防网：http://www.pc-ps.net/
SSTKJ电子
元器件网：http://www.sunstare.com/
SSTKJ微波光电产品网:HTTP://www.rfoe.net/
SSTKJ消费电子产品网://www.icasic.com/
SSTKJ实业科技产品网://www.sunstars.cn/传感器销售热线：
地址：深圳市福田区福华路福庆街鸿图大厦9732室
电话：0755-83376489 83376549 83607652 83370250
83370251
传真：0755-83376182 （0）13902971329
MSN:
SUNS8888@hotmail.com
邮编：518033 E-mail:szss20@163.com
QQ: 195847376
深圳赛格展销部：深圳华强北路赛格电子市场9583号
电话：0755-83665529 13823648918 FAX:0755-83376182
技术支持: 0755-83394033
13501568376
欢迎索取免费详细资料、设计指南和光盘
；产品凡多，未能尽录，欢迎来电查询。
北京分公司：北京海淀区知春路132号中发电子大厦3097号 TEL：4006579498
18927445855 13823791822 FAX：010-62543996
上海分公司：上海市北京东路668号上海賽格电子市场地下一层D25号 TEL：4006571586
56703037 13823676822 FAX：021-56703037
西安分公司：西安高新开发区20所(中国电子科技集团导航技术研究所)西安劳动南路88号电子商城二楼D23号
TEL：4006572198
13072977981 FAX:029-77678271
|
传感器/变送器/仪表按厂商品牌选用指南
数据隔离采集
应变片
