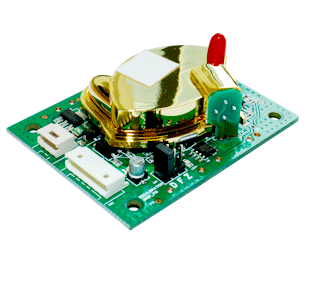

S-100 CO₂ Sensor Module
|
- Non-Dispersive Infrared (NDIR) technology used to
measure CO₂ levels.
- The world smallest size.
- Pre-calibrated.
- Provides output signal proportional to CO₂level.
- Three available outputs : AVO, TTL UART, I2C.
- Low profile 2.00mm pitch header 4 pin (power), 10 pin
(I/O) connection.
- Model available to interact with other devices.
- Gold-plated sensor provides long-term calibration
stability.
- Installed re-calibration function (Automatic or manual)

|
|
 |
|
The
S-100 CO₂ module is the world smallest sensor and can be integrated into
wide range of application product from small wall-pads to building
ventilation controller. Its main application area is Indoor Air Quality,
HVAC, Stove, Air-conditioner, Vehicle drowsiness, Gas equipment.
|
 |
|
General Performance |
Operating Temperature |
0 ~ 50℃ |
|
Operating Humidity |
0 ~ 95% RH
(Non-condensing) |
|
Operating Environment |
Residential, Commercial spaces |
|
Storage Temperature |
-30℃ ~70℃ |
|
CO²
Measurement |
Sensing method |
NDIR
(Non-dispersive Infrared) |
|
Measurement range |
0 to 5,000
ppm (expandable up to 10,000ppm) |
|
Accuracy |
±30ppm ±5% of
measured value |
|
Step Response Time (90%) |
60 seconds |
|
Sampling Interval |
3 sec. |
|
Electrical |
Power Input |
5.0V ± 0.1V
|
|
Current consumption |
Normal : 20mA
Peak : 320mA (10ms) - 3sec period |
|
Output connector |
4 pin, 10 pin |
|
Output
Singnal |
UART |
38,400BPS, 8bit, No parity, 1 stop bit
TTL Level Voltage 3.3~4.5V
|
|
I2C |
Slave mode only
Internal pull up resister
Under 400Khz Clock
TTL Level Voltage 3.3~4.5V |
|
Analog Voltage Output |
VDC 0.5 ~ 4.5V (linear output) |
|
Pin
Description |
Pin No. |
Description. |
|
1/3 |
+5V VCC |
|
2/4/9 |
GND |
|
5 |
TTL RXD (MCU→S-100) |
|
6 |
TTL TXD (MCU←S-100) |
|
7 |
I2C SCL |
|
8 |
I2C SDA |
|
10 |
Analog Output (0.5~4.5V) |
|
11/12 |
Reserved |
|
13 |
ACDL or MCDL Control |
|
14 |
Reset (Low Active) |
|
| |
|
|
S-100H
CO₂ Sensor Module
|
|
The S-100H CO₂ module is designed to be perfectly
compatible with H-550
|
- Non-Dispersive Infrared (NDIR) technology used
to measure CO₂ levels.
- The world smallest size.
- Pre-calibrated.
- Provides output signal proportional to CO₂
level.
- Three available outputs : AVO, TTL UART, I2C
- 2.54mm pitch header connector.
- Model available to interact with other devices.
- Gold-plated sensor provides long-term
calibration stability.
- Installed re-calibration function. (Automatic or
manual)
|
|
|
|
|
This model is also the world smallest sensor and can be
integrated into wide range of application product from small
wall- pads to building ventilation controller.
Its main application area is Indoor Air Quality, HVAC, Stove,
Air-conditioner, Vehicle drowsiness, Gas Equipment.
|
|
|
|
General Performance |
Operating Temperature |
0 ~
50℃ |
|
Operating Humidity |
0 ~
95% RH (Non-condensing) |
|
Operating Environment |
Residential, Commercial spaces
Room Controller |
|
Storage Temperature |
-30℃ ~70℃ |
|
CO²
Measurement |
Sensing method |
NDIR
(Non-dispersive Infrared) |
|
Measurement range |
0 to
5,000 ppm (expandable up to 10,000ppm) |
|
Accuracy |
±30ppm ±5% of measured value |
|
Step Response Time (90%) |
60
seconds |
|
Sampling Interval |
3 sec |
|
Electrical |
Power Input |
9 ~ 18VDC (±10% Regulation)
|
|
Current consumption |
Normal : 15 mA
Peak : 160mA
|
|
Output connector |
11 pin |
|
Output Signal |
UART |
38,400BPS, 8bit, No parity, 1 stop bit
TTL Level Voltage 3.3~4.5V |
|
I2C |
Slave mode only
Internal pull up resister
Under 400Khz Clock
TTL Level Voltage 3.3~4.5V |
|
Analog Voltage Output |
VDC 0.5 ~ 4.5V (linear output) |
|
Pin
Description |
Pin No. |
Description. |
|
1 |
I2C SDA |
|
2 |
I2C SCL |
|
3 |
12VDC Power Supply |
|
4 |
Reset (Low Active) |
|
5 |
Reserved (Don’t connect) |
|
6 |
GND |
|
7 |
TXD (UART) |
|
8 |
RXD (UART) |
|
9 |
Reserved (Don’t connect) |
|
10 |
Analog Output (0.5~4.5V) |
|
11 |
ACDL or MCDL Control |
|
| |
|
|
|
B-530 CO₂ Sensor Module
|
|
The model
B-530 module is designed to measure CO2
levels in the air.
This product
is maintenancefree, low cost and easily
integrated into other equipments especially. |
- Pre-calibrated.
- Flexible 3 and 7 pin connection.
- Two available outputs : UART, AVO.
- Non-Dispersive Infrared (NDIR) technology used to
measure CO₂ levels.
- Provides output signal proportional to CO₂ level.
- Model available to interact with other devices.
- Gold-plated sensor provides long-term calibration
stability.
 |
|
|
|
|
B-530 module is designed to measure CO₂
level in the air. This product is maintenance free, low cost and easily
intergrated into other equipments especially.
B-530 simultaneously transmits a calibrated digital and analog output
signal. Its compact size and low power consumption makes easy to
intergrated into a broad range of equipment.
All modules are factory calibration and ready to install and applicable
to portable as well as stationary equipment including wall-mountable
fixtures. |
|
|
|
General Performance |
Operating temperature |
0 ~ 50℃ |
|
Operating humidity range |
0 ~ 95% RH
(Non-condensing) |
|
Operating Environment |
Residential, Commercial spaces, Heat exchanger, Ventilation
device, HVAC |
|
Storage Temperature |
-30℃ ~70℃ |
|
CO²
Measurement |
Sensing method |
NDIR
(Non-dispersive Infrared) |
|
Measurement range |
0 to 5,000
ppm (expandable upto 10,000ppm) |
|
Accuracy |
±30ppm ±5% |
|
Step Response Time(90%) |
120 sec |
|
Sampling Interval |
3 seconds |
|
Electrical |
Power input |
9 to 18VDC
(±10% Regulation) |
|
Current consumption |
Normal : 25
mA / Peak : 130mA |
|
Output connector |
3Pin / 7Pin (Molex 053015) |
|
Output |
Digital |
UART
Asynchronous serial, TTL Level, 38,400bps
|
|
Analog Voltage Output |
VDC 0.5 ~
4.5V (linear output) |
|
|
|
B-530A CO₂ Sensor Module
|
- Specially designed for agricultural use.
- Special water-proof coating.
- Stability and strength under extreme conditions.
- Pre-calibrated.
- Flexible 3 and 7 pin connection.
- Two available outputs : UART, AVO.
- Non-Dispersive Infrared (NDIR) technology used to
measure CO₂ levels.
- Provides output signal proportional to CO₂ level.
- Model available to interact with other devices.
- Gold-plated sensor provides long-term calibration
stability.
|
|
|
|
|
The B-530A CO₂ module is designed to
measure CO2 level in the air.
This product is low cost and small enough to be integrated into other
equipments easily.
It’s main application area is agricultural area such as mushroom house,
green house and farms which needs robust and reliable sensor technology.
This product provides silicon coating and membrane filter to protect the
influence of moisture and spores, small particles in the air. |
|
|
|
General Performance |
Operating temperature |
0 ~ 50℃ |
|
Operating Humidity |
0 ~ 95% RH
(Non-condensing) |
|
Operating Environment |
Agricultural field, Mushroom house
Pig breeding farm, High Humid. field |
|
Storage Temperature |
-30℃ ~70℃ |
|
CO²
Measurement |
Sensing method |
NDIR
(Non-dispersive Infrared) |
|
Measurement range |
0 to 5,000
ppm (expandable upto 10,000ppm) |
|
Accuracy |
±30ppm ±5 % |
|
Step Response Time(90%) |
120 sec |
|
Sampling Interval |
3 seconds |
|
Electrical
Data |
Power input |
DC 9V~18V,
80mA average |
|
Current consumption |
Normal : 25
mA / Peak : 130mA |
|
Output connector |
3Pin / 7Pin (Molex 053015) |
|
Output |
Digital |
UART
Asynchronous serial, TTL Level, 38,400bps
|
|
Analog Voltage Output |
VDC 0.5 ~
4.5V (linear output) |
|
 |
AQM-100 Transmitter
|
|
The AQM
measures the indoor air quality (IAQ). Installed in the living
room or in the bed room, It measures the level of CO2,
Temperature, Humidity, VOCs to maintain pleasant air quality. |
- Measures the indoor air quality (IAQ)
- compact size at a low cost
- automati-cally control the air conditioner
|
|
|
|
|
The
AQM measures the indoor air quality (IAQ). Installed in the living room
or in the bed room, It measures the level of CO2, Temperature, Humidity,
VOCs to maintain pleasant air quality.
The
product may be installed in the existing ventilation system and
ventilation system at a low cost.
The
AQM is a highly sensitive 4 sensors (CO2, temperature, humidity, VOCs)
and comes in a compact size at a low cost.
RS-485
and RS-232 connect AQM to other systems (ex. home network system) thus
help notifying the air quality regularity. It ensures that AQM can
automatically control the air conditioner, humidifier or other
ventilation devices. |
|
|
|
General Performance |
Operating temperature range |
0 ~ 50℃ |
|
Operating humidity range |
0 ~ 95%RH |
|
Storage temperature range |
-20℃~+60℃ |
|
Power input |
DC 12V |
|
Current consumption |
50mA average,
peak 600mA |
|
Signal output |
RS-485,
RS-232 (TX only) |
|
Dimensions |
75W x 120H x
22D (mm) |
|
CO² Sensor |
Sensing method |
NDIR |
|
Measurement range |
0~2,000ppm /
0~5,000ppm / 0~10,000ppm
(Selection
at the time of order) |
|
Accuracy |
±30ppm ±5 % |
|
Sampling time |
3 sec |
|
Response time(90%) |
30 sec |
|
General Performance |
Measurement range |
-20℃~+60℃ |
|
Accuracy |
±1.0℃ |
|
Humidity Sensor |
Measurement range |
0%~95% |
|
Accuracy |
±5%, RH |
|
VOCs Sensor |
Sensing gas |
TVOCs,HC etc. |
|
Detecting method |
Semiconductor |
|
|
|
|
|
|
CD
series detector is designed to detect carbon dioxide gas in the air.
This model has good resolution by NDIR method, so it is an optimum
device for ventilation of building, house, etc. Also, the advantage of
this model is compact size and easy installation. |
|
|
|
General Performance |
Operating Temperature |
0 ~ 50℃ |
|
Operating Humidity |
0 ~ 95% RH
(Non-condensing) |
|
Operating Environment |
Residential,
Commercial spaces, Buildings |
|
Storage Temperature |
-20℃ ~60℃ |
|
CO₂ Sensor |
Sensing Method |
NDIR
(Non-dispersive Infrared) |
|
Measurement Range |
0 to 5,000
ppm (expandable up to 10,000ppm) |
|
Accuracy |
±30ppm ±5% of measured value |
|
Step Response Time(90%) |
150 seconds |
|
Sampling Interval |
3 sec |
|
Electrical Data |
Power Input |
24VAC, 24VDC ± 20%, 50/60Hz |
|
Output Signal |
2 ~ 10VDC (default) or 4 ~ 20mA
(Jumper selectable) |
|
Relay Output
(CD-200 Only) |
Contract Rating |
1A/120VAC or 1A/24VDC |
|
Configuration |
SPST, Normally Open realy |
|
Relay Activated |
Greater than 1,000ppm |
|
Realy Deactivated |
Less than 900ppm |
|
 |

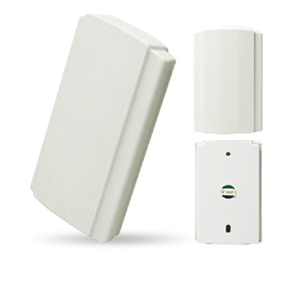

COD-100 Transmitter
|
|
COD-100 is IAQ (Indoor Air Quality) sensor, which is designed to
detect carbon Monoxide gas in the air. |
- Pre-calibrated
- Convenient use with varying voltage applications
- Easily installed at a low cost when used with exclusive
case
- Semiconductor used to measure CO levels
- Provides output signal proportional to CO level
- Provides output signal proportional to CO₂level
- Model available to interact with other devices
- Optimum for parking lot, tunnel and under ground places
|
|
|
|
COD-100 is IAQ (Indoor Air Quality) sensor, which is designed to detect
carbon Monoxide gas in the air.
COD-100 comes in two different models for convenient use varying voltage
applications between 2~10VDC and current applications between 4~20mA.
COD-100 can be easily installed at a low cost when used with ELT’s
exclusive case. This model has good resolution,
so it is optimum for parking lot, tunnel and underground places. Also
the advantage of this model is compact size and
easy nstallation. |
|
|
|
General Performance |
Operating Temperature |
-10 ~ 50℃ |
|
Operating Humidity |
10 ~ 95% RH
(Non-condensing) |
|
Storage Temperature |
-30℃ ~60℃ |
|
Storage Humidity |
-0~95%RH
(Non-condensing) |
|
Operating Environment |
Residential, Commercial spaces |
|
CO
Measurement |
Sensing Method |
Semiconductor |
|
Measurement Range |
0 to 250 ppm |
|
Accuracy |
±@23℃, 50%RH
0~100ppm : ±5% FS
100~250ppm : ±10% FS
|
|
Response Time |
Within 5
minutes |
|
Warm-up Time |
2 hours |
|
Electrical Data |
Power Input |
24VAC, 24VDC |
|
Output Signal |
Voltage Output
|
2 ~ 10VDC |
|
Current Output |
4 ~ 20mA |
|
 |

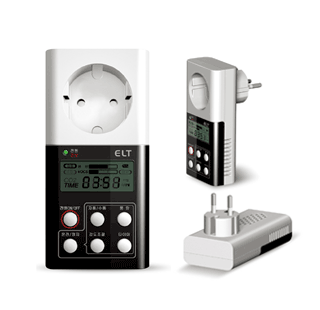

AV-100 Monitor
|
|
AV-100 is
equipped with a socketed NDIR CO₂ sensor which allows automated
ventilation according to the level of CO₂ |
- Optimum indoor air quality by numerical value
- Real time monitoring of database
- Interlocking with home network
- Scheduled to be released
|
|
|
|
|
AV-100
is equipped with a socketed NDIR CO₂ sensor which allows automated
ventilation according to the level of CO₂.
Compared to the existing ventilation fan controllers that require the
installation at the time of building construction, AV-100 can be easily
installed and operated it only needs to be connected to power source.
AV-100
works by measuring the level of CO₂, VOCs or both CO2/VOCs. You may
choose which sensor should be installed. |
|
|
|
General Performance |
Operating temperature range |
0 ~ 50℃ |
|
Operating humidity range |
0 ~ 95% RH |
|
CO²
Measurement |
Sensing method |
Non-Dispersive Infrared (NDIR) |
|
Measurement range |
0 ~ 10,000ppm |
|
Accuracy |
±30ppm ±5 % |
|
Response time(90%) |
30 sec |
|
 日本Figaro气体传感器选型
日本NEMOTO气体传感器
日本FIS气体传感器
英国CITY城市气体 CITY公司/IT公司/SENSORIC公司气体传感器选购指南
英国Alphasense气体传感器选型
瑞士Membrapor气体传感器选型
 德国IT公司气体传感器选购资料 德国SENSORIC公司气体传感器 RAE气体传感器气体检测仪 意大利森斯特传感器
Dittrich气体产品
国产气体传感器选型
DCS公司红外产品
VTI公司红外产品
SENSORS公司红外热导产品
爱丁堡公司红外产品Honeywell传感器
SHINYEI传感器
E2V传感器
GE传感器SMARTGAS传感器MSI传感器MEAS传感器
英国SSC气体检测 宝亚呼吸防护设备 Dynament气体传感器德国Schutz
NDIR 红外气体传感器美国MAXTEC产品 美国Teledyne气体分析仪及氧传感器
美国AMI氧分析仪及传感器 美国AII氧分析仪传感器 Sensors
Direct 加拿大BW科技日本新宇宙NEW
COSMOSSERVOMEX气体分析英国GSS气体传感器英国SST传感器 southland
sensing EnviteC安维特 韩国SYHITECH 韩国SENKO
韩国SOHA 韩国KNC(NEWCERA)
韩国KOREA
DIGITAL 韩国ELT
韩国SENTECH SUNSTAR气体传感器
电化学气体传感器
半导体气体传感器
催化燃烧式气体传感器
固体电解质气体传感器
热传导式气体传感器
红外气体传感器
离子烟雾传感器
机动车用气体传感器
气体变送器/检测仪
O2氧气传感器专场
CO2二氧化碳传感器专场
CH4甲烷传感器专场
室内空气质量监测控制
温湿度监测控制
医疗设备用传感器
红外气体分析元件1
红外气体分析元件2
红外气体分析元件3
激光红外气体分析元件1
激光红外气体分析元件2
激光红外气体分析元件3
气体变送器模块
BW便携式气体检测仪
BW固定式气体检测仪CO传感器
S02传感器H2S传感器
NH3传感器
NO传感器
NO2传感器
CH2O传感器
CL2传感器
HCL传感器
H2传感器O3传感器C2CL4传感器C2H4传感器
HF传感器
HBR传感器
COCL2传感器
HCN传感器
ASCL3传感器
ASF3传感器C4H6传感器
CLO2传感器
SIH2CL2传感器
（CH3传感器NH传感器
GeCL4传感器
I2传感器
PCL3传感器
SICL4传感器
SO2F2传感器
酒精传感器其它 |
传感器/变送器/仪表按厂商品牌选用指南
