Temperature series strain gauge
This is F-series gauge having a pre-attached vinyl lead wire and an entire coating with epoxy resin. The coating is transparent and flexible, which ensures easy installation of the gauge.
|
Applicable specimen
|
Metal
|
Backing
|
Epoxy
|
|
Operational temperature(°C)
|
0~+80°C
|
Element
|
Cu-Ni alloy foil
T-thermocouple |
|
Temperature compensation range(°C)
|
+10~+80°C
|
Strain limit
|
3%
(30000×10-6strain) |
|
Bonding adhesive
|
CN, P-2
|
Fatigue life at room temperature
|
1×106
(±1500×10-6strain) |
Detailed material
Single-element (G.F. 2.1 approx.)
Series F
0.08mm2 PVC lead wire pre-attached Total leadwire
resistance per meter : 0.44Ω
(as for copper wire)
|
Type
|
Gauge
length (mm) |
Gauge
width (mm) |
Backing
length (mm) |
Backing
width (mm) |
Resistance
(Ω) |
Lead wire
lengt |
|
FLA-1T-11-3LT
FLA-1T-17-3LT FLA-1T-23-3LT |
1
|
1.3
|
5.0
|
2.5
|
120
|
3-wire 3m
|
|
FLA-2T-11-3LT
FLA-2T-17-3LT FLA-2T-23-3LT |
2
|
1.5
|
6.5
|
3.0
|
120
|
3-wire 3m
|
|
FLA-5T-11-3LT
FLA-5T-17-3LT FLA-5T-23-3LT |
5
|
1.5
|
10.0
|
3.0
|
120
|
3-wire 3m
|
Series QF
ø 0.2mm fluorinated resin (FEP) sheathed leadwire of 3m Total
leadwire per meter:1.05Ω
(as for copper wire)
|
Type
|
Gauge
length (mm) |
Gauge
width (mm) |
Backing
length (mm) |
Backing
width (mm) |
Resistance
(Ω) |
Lead wire
lengt |
|
QFLA-1T-11-6FB-3LT
QFLA-1T-17-6FB-3LT QFLA-1T-23-6FB-3LT |
1
|
1.3
|
5.0
|
2.5
|
120
|
3-wire 3m
|
|
QFLA-2T-11-6FB-3LT
QFLA-2T-17-6FB-3LT QFLA-2T-23-6FB-3LT |
2
|
1.5
|
6.5
|
3.0
|
120
|
3-wire 3m
|
|
QFLA-5T-11-6FB-3LT
QFLA-5T-17-6FB-3LT QFLA-5T-23-6FB-3LT |
5
|
1.5
|
10.0
|
3.0
|
120
|
3-wire 3m
|

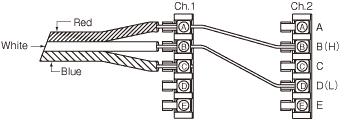

Wiring method
Continuous 2 channels required
Ch.1 for strain Quarter bridge with 3-wire system
Ch.2 for temperature with T-thermocouple
Applicable instruments : TDS-150/-302/-303/-601/-601A/-602/-101R/-102/-300
1 channels required
Applicable instruments : TDS-530/-630
For extension, apply exclusive leadwire.
Refer to operation manual for wiring method
Temperature integrated gauges are available for other series of strain gauges. Contact TML for detail.
