P series Polyester wire strain gauge

This is a wire strain gauge having polyester resin backing. It is mainly used for measurement on concrete, mortar or rock.

Applicable specimen	Concrete, Mortar	Backing	Polyester
Operational temperature(°C)	-20~+80°C	Element	Cu-Ni (wire)
Temperature compensation range(°C)	+10~+80°C	Strain limit	2% (20000×10-6strain)
Bonding adhesive	CN-E, RP-2	Fatigue life at room temperature	1×105 (±1000×10-6strain)

Detailed material

• P series Polyester wire strain gauge

CONCRETE, MORTAR, ROCK MATERIALS USE

Gauge pattern	Type	Gauge length (mm)	Gauge width (mm)	Backing length (mm)	Backing width (mm)	Resistance (Ω)
Single-element (G.F. 2.1 approx.)	PL-60-11	60	1	74	8	120
	PL-90-11	90	1	105	8	120
	PL-120-11	120	1	135	8	120
90°2-element Cross Plane type (G.F. 2.1 approx.)	PLC-60-11	60	1	74	74	120
45°/90°3-element Rosette Plane type (G.F. 2.1 approx.)	PLR-60-11	60	1	74	74	120

Each package contains 10 gauges.

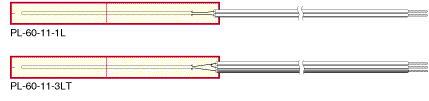

Leadwire-integral P series

0.11mm² integral vinyl leadwire Total leadwire resistance per meter : 0.32 Ω

Type	Gauge length (mm)	Gauge width (mm)	Backing length (mm)	Backing width (mm)	Resistance (Ω)	Lead wire pre-attached	Type name of lead wire preattached
PL-60-11	60	1	74	8	120	Paralleled 1m Paralleled 3m Paralleled 5m 3-wire 3m 3-wire 5m	-1L -3L -5L -3LT -5LT
PL-90-11	90	1	105	8	120	Paralleled 1m Paralleled 3m Paralleled 5m 3-wire 3m 3-wire 5m	-1L -3L -5L -3LT -5LT
PL-120-11	90	1	135	8	120	Paralleled 1m Paralleled 3m Paralleled 5m 3-wire 3m 3-wire 5m	-1L -3L -5L -3LT -5LT

Each package contains 10 gauges.
Leadwire-integral service is not available with 2-element, 3-element gauge of P series
