Productportfolio

Thermopile Sensors

Single Thermopile Sensors
Heimann offers a variety of Thermopile sensors with different element sizes. We can offer single, duals, quad sensor types and even high temperature single sensors to you.

Thermopile Modules

The Heimann integrated sensors are thermopile sensor, low-noise amplifier and temperature reference integrated in the same housing. The devices are available in standard TO-39 packages (HIS-series), TO46-packages (HMM-series) or SMD packages (HCM-series). The signal conditioning ASIC delivers analog voltages and can be used in a wide supply range of 2.7V to 5.5V. The integrated sensors come with factory adjusted gain factors and can be equipped with various available or customized filters.

Thermopile Arrays and Imaging

Single Thermopile Sensors
Our productportfolio of thermopile arrays consists of linear arrays, 2D arrays, array modules and array application sets. Linear arrays and 2D arrays are available in different element sizes. The array application sets make it possible that you can realize a fast and easy imaging solution for your PC. A lot of applications are possible such as industrial temperature monitoring or person detection.

Pyroelectric Sensors

Our pyroelectric sensors are lithium tantalate based and are distinguished by a very high detectivity. We offer single, dual and quad sensor types and several types of linear arrays.

Infrared Sources

Single Thermopile Sensors
Infrared sources are thermal infrared emitters, mostly used in appliances for gas concentration measurement.

Vaccuum and Pressure

Sensors in TO-Packages and Vacuum Sensor Application Sets are available.

MEMS Services

We offer bulk micromachining and surface micromachining for silicon substrates. These processes are used to produce three- dimensional-structures like micro-electromechanical systems (MEMS) or micromachinery.



Thermopile Sensors
In General
Heimann offers the worldwide first fully monolithic thermopile arrays in TO-8 housing.


8x8 elements
16x16 elements
32x31 elements (no digital out, final stage in development)

The Heimann integrated sensors are thermopile sensor, low-noise amplifier and temperature reference integrated in the same housing. The devices are available in standard TO-39 packages (HIS-series), TO46-packages (HMM-series) or SMD packages (HCM-series). The signal conditioning ASIC delivers analog voltages and can be used in a wide supply range of 2.7V to 5.5V. The integrated sensors come with factory adjusted gain factors and can be equipped with various available or customized filters.


Thermopile Sensors / Single

Single Sensors - HMSZ11-Series

Single Thermopile Sensors
The worldwide smallest Thermopile Mini Sensor, comprising a new type CMOS compatible sensor chip plus a thermistor reference chip, features good sensitivity, small temperature coefficient of sensitivity as well as high reproducibility and reliability. The sensor is available in a new transistor outline package smaller than TO-46, equipped with an IR transmitting filter window. The sensor can be equipped with customized filter upon request.






Single Thermopile Sensors - HMS-Series, HTS-Series

The HMS- and HTS-Series of CMOS compatible thermopile sensor chips feature good sensitivity, small temperature coefficient of sensitivity as well as high reproducibility and reliability. HMS-Sensors are housed in TO-46, HTS-Sensors are offered in TO-39 packages. The smaller package sizes benefit applications in which sensor mounting is a critical parameter. The HMS-M types offer the possibility to integrate an infrared lens into a TO-46 housing and to reduce the field of view accordingly. The smaller chip TP1 is well suited for temperature measurements which require a precise measuring spot whereas the chip type TP2 offers higher signal and TP3 offers even the highest signal. Additionally Heimann Sensor can offer integrated thermopile sensors (HIS-series) combining a thermopile sensor chip with an ASIC in a TO-39 or TO-46 housing.





Single Thermopile Sensors with Lens Optics - HMS-M-Series

Single TP-Sensor with lens optics
The HMS-M-Series combines the good characteristics of the HMS-Series and the advantages of a diffractive lens respective field of view and signal. The focal length of this lens is 3.0 mm and available with long wave path (LWP) F5.5 or F8.0 filter coatings. Also available is an F5.5 Ge-Lens in TO-39 housing like A11 F5.5, for example.






Single Thermopile Sensors in SMD ceramic package - HCS-Series

Single Thermopile in SMD-Package
The HCS-Series combine wonderful color package with supreme functionality...






Thermopile Sensors / Duals

Duals - HTS E-Series

Single Thermopile Sensors
The HTSE Multichannel Sensors comprise two independent sensor chips for a multichannel gas concentration measurement. Typically one of the optical channels contain a gas specific filter window and the other channel, equipped with a filter with center wavelength where no gas absorption occurs, serves as reference. Of course we can also provide Multichannel Sensors with customer filters (thickness should be close to 0.5 mm). The sensors are offered in TO-39 housings.







Thermopile Sensors / Quads

Quads – HTSQ-Series, HGSQ-Series

Single Thermopile Sensors
The HTSQ Multichannel Sensors comprise four independent sensor chips for a multichannel gas concentration measurement. Typically one to three of the optical channels contain a gas specific filter window and the other channel, equipped with a filter with center wavelength where no gas absorption occurs, serves as reference. Of course we can also provide Multichannel Sensors with customer filters (thickness should be close to 0.5 mm). These sensors are offered in TO-39 packages.









Thermopile Sensors

High Temperature Single Sensors

Single Thermopile Sensors
These special sensors can be operated up to 180 °C.

More Information about HTS-A10 (PDF)





Thermopile Arrays and Imaging

In General

Heimann offers the worldwide first fully monolithic thermopile arrays in TO-8 or TO-39 housing.


    Array
  • 16x4 elements
  • 8x8 elements
  • 16x16 elements
  • 32x31 elements
  • 64x62 elements (in development)









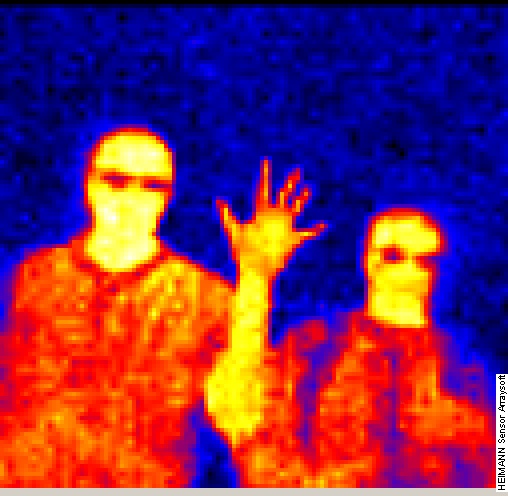

Thermal Imaging Example



This video, taken with our array-sensor (32x31), shows a person drying his hair and fidgeting with the dryer. White represents the highest temperature in the scene. Details are lost due to compression.



2D Arrays

Infrared Sensor Arrays with Analog Output

Array
Our HTPA series consists of 2D arrays with different pixel counts:

 8x8 elements
 16x16 elements
 32x31 elements
 64x62 elements (in development)


These discrete sensors can be configured with different kinds of lenses, resulting in a variety of field of views (FOV). Furthermore, we do customer specific optics on request. The small dimensions and the very low power consumption makes the HTPA series very attractive for handhelds and battery powered solutions. The sensor chip contains next to the sensor elements integrated low noise chopper amplifiers and low pass filters + temperature reference, voltage reference and an analogous output. Some types also provide an digital output, powered by their integrated 12bit ADC.







Infrared Sensor Array with I2C-compatible-Bus Interface


 16x4 elements
Array






Array Modules

We offer thermopile array modules with electrical interface for various applications.

Array
Heimann Sensor offers calibrated HTPA-Modules for thermal imaging. Those modules can be configured with several lenses for different applications. As Interface you can choose between Ethernet (UDP) or UART. It is possible to get a temperature or voltage stream, or to get single frames. Furthermore, these data can be visualized by the Heimann Sensor ArraySoft GUI.






Application Sets and Imaging

Fast and easy Solution



We offer thermopile array application sets and modules as a fast and easy imaging solution on your PC. The connection can be done via Ethernet, for industrial applications we offer a UART-Interface (TTL-Level). The sets are delivered with a graphical user interface for visualisation. Our fully monolithic arrays are the pathfinders to application fields like thermal imaging, industrial temperature monitoring, hot spot detection, fire- or person detection. Monolithic means micro-machined sensor elements combined with an application specific integrated circuit. So it is possible to use very small housings like TO8. These low- cost camera- alike sensors can be inserted in small systems and occupy little space.





















Application Set
Our fully monolithic arrays are the pathfinders to application fields like thermal imaging, fire-, hotspot- or person detection. These low- cost camera-alike sensors can be inserted in small systems and occupy little space. Therefore, it is possible to use very small housings like TO-39. Due to the significant price drop compared to micro bolometers these small imaging systems open completely new application fields.
