以色列M-SYSTEM公司的DOC/DOM电子盘（DISKONCHIP2000），IDE电子硬盘，容量有8M、16M、32M、24M、48M、64M、80M、144M等。其中8M、16M、32M和64M都有现货。经销的DOM电子盘有INNODISK、M-SYSTEM、PQI、APACER和SANDISK等，容量有16M、32M、64M、128M、256M等。经销COMPACT FLASH卡，容量有16M、32M、64M、128M和256M。CF卡适配器和DOC的扩展卡。
军用电子盘、军用存储器。广泛应用于工控机、路由器、防火墙、机顶盒、ＰＤＡ、智能终端等产品。专业提供:DOC电子盘、DOM电子盘、doc\dom电子盘.DOC2000电子盘．应用于：工业控制、公共安全、电信、航空军工、电力及信息家电等领域。
|
SanDisk / msystems Store Your World
in Ours
|
Choose a Product Type |
 |
Development |
 |
Flash Disks |
|
|
About SanDisk / msystems: msystems has been
transforming raw flash into storage solutions since
1989. From embedded flash drives for millions of
mobile handsets to the creation of USB smart drives
designed for leading global brands, msystems
continually pioneers personal storage paradigms. We
enhance people's lives by creating smart personal
storage to enable all of us to easily carry, access
and control our data, whenever and wherever we
choose.
|
|
Development |
| Other |
 |
| Hitachi S1 (SH) Platform |
(S1-EVB-VER1) DiskOnChip
Evaluation Board (Version 1) for the Hitachi S1
Platform |
| ISA for 5V DIP |
(DIP-ISA-V5-EVB) DiskOnChip Dip
EVB - Evaluation Board |
| Local Bus |
(LB-EVB-VER2) DiskOnChip Local
Bus Evaluation Board Version 2 |
| PCI |
(PCI-G-EVB) DiskOnChip PCI-G
Evaluation Board |
| ISA for 3V DIP |
EOL
PRODUCT - (DIP-ISA-V3-EVB) DiskOnChip® 3.3V
DIP EVB - Evaluation Board |
|
Flash Disks |
| Other |
| CF 5000 |
CompactFlash® 5000 Industrial
Grade |
| M-DOC H3 |
(DiskOnChip H3) Multi-sourced
embedded flash drive, using raw NAND flash material
from our partners. |
| M-Module uDOC |
(uDiskOnChip) USB-Based Flash
Storage Solution |
| SSD SATA |
(FFD Serial ATA) Reliable, high
capacity SATA drive |
| SSD SATA 5000 2.5" |
Industrial Solid State Drive |
| SSD UATA |
(FFD Ultra ATA) Outstanding Flash
Disk Performance |
| SSD UATA 5000 1.8" |
1.8" Solid state drive |
| SSD Ultra320 SCSI |
(FFD Ultra320 SCSI) Highest
Capacity Ultra320 SCSI Flash Disk |
| DiskOnChip DIMM
Plus |
EOL
PRODUCT - Flash Disk with Protection and
Security-Enabling Features |
| M-DOC G3 |
EOL
PRODUCT - (mDiskOnChip G3) No-Compromise,
Cost, Reliability & Performance |
| M-DOC G4 |
EOL
PRODUCT - (DiskOnChip G4) High performance
and density in a tiny footprint |
| M-DOC H1 |
EOL
PRODUCT - (DiskOnChip H1) Delivering high
densities at low costs |
| M-DOC P3/4 |
EOL
PRODUCT - (mDiskOnChip P3/4) High Performance
and Reliable Flash Disk |
| M-Module DOC 2000 |
EOL
PRODUCT - (DiskOnChip 2000) The
Industry-Standard Local Storage Solution |
| M-Module iDOC |
EOL
PRODUCT - (iDiskOnChip) Flash Disk with IDE
Interface |
| SSD 350 SCSI |
EOL
PRODUCT - (FFD 3.5" SCSI) High Performance
3.5" SCSI Flash Disk |
| SSD IDE4K |
EOL
PRODUCT - (IDE 4000) The affordable flash
disk solution |
| SSD IDEP 2.5" |
EOL
PRODUCT - (FFD IDE PLUS) Drop-in replacement
for 2.5" IDE/ATA rotating disks |
| SSD IDEP 3.5" |
EOL
PRODUCT - (FFD IDE PLUS) Drop-in replacement
for 3.5" IDE/ATA rotating disks |
| SSD Narrow SCSI
2.5" |
EOL
PRODUCT - (FFD Ultra Narrow SCSI) High
Density and Performance Narrow SCSI Flash Disk |
| SSD Narrow SCSI
3.5" |
EOL
PRODUCT - (FFD Ultra Narrow SCSI) High
Density and Performance Narrow SCSI Flash Disk |
| SSD Wide SCSI
2.5" |
EOL
PRODUCT - (FFD Ultra Wide SCSI) The smallest
ultra wide SCSI flash disk |
| SSD Wide SCSI
3.5" |
EOL
PRODUCT - (FFD Ultra Wide SCSI) High
Performance Ultra Wide SCSI Flash Disk |
|
|
常用SANDISK/M-SYSTEMS公司DOC电子盘资料
|
|
|
电子盘
|
MD2802-D08
|
M-SYSTEMS
|
08+
|
DIP
|
下载 |
|
电子盘
|
MD2202-D16
|
M-SYSTEMS
|
08+
|
DIP
|
下载 |
|
电子盘
|
MD2202-D32
|
M-SYSTEMS
|
08+
|
DIP
|
下载 |
|
电子盘
|
MD2202-D64
|
M-SYSTEMS
|
08+
|
DIP
|
下载 |
|
电子盘
|
MD2202-D128
|
M-SYSTEMS
|
08+
|
DIP
|
下载 |
|
MD2202-D16 MD2202-D16-X MD2202-D16-P MD2202-D16-V3-P
MD2202-D16-X-P MD2202-D32 MD2202-D32-X MD2202-D32-X-P
MD2202-D32-V3-P MD2202-D32-V3-X-P MD2202-D48 MD2202-D48-X-P
MD2202-D64 MD2202-D64-X MD2202-D64-X-P MD2202-D64-V3-P
MD2202-D64-V3-X-P MD2202-D64-P MD2202-D96 MD2202-D96-P
MD2202-D96-V3-P MD2202-D96-X-P MD2202-D96-V3-X-P
MD2202-D128 MD2202-D128-X MD2802-D08 MD2202-192-X
MD2202-D192 MD2203-D144 MD2203-D144-V3 MD2202-D192-V3-X
M-Systems’ complete range of memory products are
targeted at a variety of markets, including: multimedia mobile handsets,
USB flash drives, embedded systems, the military and aerospace.Based on M-Systems’ innovative IP, these products are enabling a
growing, worldwide customer base
to deliver reliable, high-performance, high-capacity data storage
solutions. |
|
Mobile and Wireless |
| Optimized Multimedia Memory Solutions |
 |
|
Product Name |
Capacity (MB) |
Package |
Interface |
|
DiskOnChip for Mobile |
32-1,024 |
FBGA |
SRAM/NOR |
DiskOnChip-
Based MCP |
|
MCP |
SRAM/NOR |
|
|
 |
|
Product Name |
Capacity (MB) |
Package |
Interface |
MegaSIM Series
I (32-bit processor,
E-Flash) |
16-128 |
Smart Card Plug-in |
ISO 7816, MMC 3.31, USB 2.0 |
MegaSIM Series
II (32-bit secure core,
Mask ROM) |
16-256 |
Smart CardPlug-in |
ISO 7816, MMC 3.31, USB 2.0 |
|
|
|
Personal Portable Storage |
| The Key to Leading Personal Storage |
 |
|
Product Series |
Capacity |
Package |
Interface |
Security |
Software Application |
DiskOnKey 100
|
64MB to 2GB |
Mini, Slim |
USB 2.0 |
|
|
|
DiskOnKey 500 |
64MB to 4GB |
Slim |
USB 2.0 |
Password + AES Encryption |
MyKey, KeySafe V3.1, Boot Utility,
Autorun
|
|
Xkey Drive |
256MB to 2GB |
|
|
128-bit AES encryption 2-Factor Authentication Browser
trail cleanup |
|
|
|
|
Embedded On-Board & Modular |
| Flash Storage Diversity at its Best |
 |
|
Product Name |
Capacity (MB) |
Package |
Interface |
uDOC
|
32-2,048 |
Horizontal, Low Profile |
USB 2.0 |
|
iDOC |
16-1,536 |
Horizontal, Vertical |
ATA 3 |
|
DiskOnChip 2000 |
16-1,024
|
DIP |
ISA, Local bus |
|
DiskOnChip H1 |
256 - 2,048 |
FBGA 12x18mm |
NOR-like interface |
|
DiskOnChip G4 |
128, 256 |
FBGA 9x12mm |
NOR-like interface |
DiskOnChip G3
|
64-128 |
FBGA 7x10mm, TSOP-I |
ISA, Local bus |
DiskOnChip P3
|
32 |
FBGA 9x12mm, TSOP-I |
ISA, Local bus |
|
|
|
Rugged / Military Aerospace |
| Solid-State Hard Disk Drive Replacements |
 |
|
Product Name |
Capacity |
Package |
Interface |
SATA
Products
|
1GB-128GB |
2.5"
|
SATA
1.0a |
IDE
Products
|
128MB-128GB
|
1.8"/2.5"/3.5"
IDE 40/44 pin
|
ATA
2, ATA 3
ATA 6 |
SCSI
Products
|
128MB-176GB
|
2.5"/3.5"
Ultra SCSI
50/68/80 pin |
SCSI-1,
SCSI-2,
SCSI-3, SCSI-4
|
|
|
Mobile DiskOnChip G3
300 DPI jpg 2.67MB
|
Mobile DiskOnChip G3
300 DPI jpg 1.11MB
|
Mobile DiskOnChip G3
300 DPI jpg 2.21MB
|
Mobile DiskOnChip P3
100 DPI jpg 53kb
|
| |
uDiskOnChip (uDOC) RoHS Compliant
300 DPI, 260kb JPG
|
uDiskOnChip (uDOC)
300 DPI, 435kb JPG
|
DiskOnChip G3
300 DPI, 100kb JPG
|
DiskOnChip P3
300 DPI, 484kb JPG
|
| |
DiskOnKey Classic
300 DPI, 1.6MB JPG
|
DiskOnKey Classic 2.0
300 DPI, 1.2MB JPG
|
DiskOnKey Classic with Universal Cradle
300 DPI, 1.2MB JPG
|
FFD Ultra Wide SCSI
300 DPI, 1.0MB JPG
|
| |
FFD IDE 4000
300 DPI, 1.0MB JPG
|
FFD Ultra ATA 2.5"
300 DPI, 1.4MB JPG
|
FFD 2.5" IDE Plus
300 DPI, 1.1 MB JPG
|
|
工业标准区域储存解决方案 |
Pin-Out 图
DiskOnChip 2000 DIP
|
- 单芯片快闪(flash)磁盘
- 简易的使用接口
- 包装: 32-pin DIP包装
- 容量: 16Mbyte – 1Gigabyte (DIP)
- EPROM兼容的电子接口
- 高效能 - 1.4/0.5 Mbytes/秒持续读写能力
- EDC /ECC提供最佳资料可靠性
- 完整的开机激活操作性
- 内建TrueFFS® 提供完整的硬盘仿真
- 广泛处理器/操作系统(O/S)支持
- Windows CE Persistent Registry最佳解决方案
- 8 Kbyte记忆窗口
- 最具成本效益的解决方案
- 低电源耗损
|
|
|
|
|
概述
M-Systems的 DiskOnChip 2000 为标准32-pin
DIP包装高效能的单芯片快闪磁盘.这一独特的资料储存解决方案能提供最具成本效益的资料储存方式，远胜于传统硬盘。特别适用于有空间限制及容量变化的应用。DiskOnChip
2000能简易地安装于CPU板上，安装后你马上就拥有可开机激活的快闪磁盘.。
网际网络设备、瘦客户终端机（Thin Clients）及内嵌式主机板的最佳解决方案
DiskOnChip 2000已经成为网际网络设备(如 机顶盒，set-top-boxes)、瘦客户终端机(or
精简型终端机)及内嵌式单板计算机的标准快闪磁盘模块。
TrueFFS
DiskOnChip 2000包含内建的M-Systems专利TrueFFS® (True Flash File
System)技术，提供完整的资料读/写能力及硬盘仿真。TrueFFS于扇区及档案层级皆与硬盘兼容。 DiskOnChip
2000可在所有主要操作系统中运作，包括DOS, Windows Embedded NT/CE/2000, pSOS+, VxWorks,
QNX等。经特别设定后，DiskOnChip 2000也可用于无操作系统或非x86的环境下运作。
可靠性
使用TrueFFS再加上内建的EDC/ECC（错误侦察及除错）提供最佳的资料储存可靠性。即使在最严格的操作条件下（例如停电等情况）。先进的损耗平衡功能(Wear
leveling)可提供最长的快闪及内存寿命及最大的使用量。
DiskOnChip 2000 规格
兼容性软、硬件皆可与8MB DiskOnChip Millennium 兼容
主机操作系统 (Host OS) 支持Windows CE、Windows XP、VxWorks、Linux、QNX、DOS等 (能针对其它工作环境做订制)
容量DIP: 16 Mbytes 到 1 Gbytes
效能持续读取速度: 1.4 Mbytes/sec持续写入速度: 500 Kbytes/secBurst传输读取速率: 5 Mbytes/secBurst传输写入速率: 5 Mbytes/sec
包装类型32-pin DIP
尺寸（毫米）低包装: 43.75 x 18.10 x 5.80高包装: 45.60 x 18.80 x 13.50
电流消耗
| |
3.3V |
5V |
| 待机电流消耗 -低包装 |
40μA |
60μA |
| 待机电流消耗 -高包装 |
120μA |
240μA |
| 运转电流消耗 |
30mA |
40mA |
电压DIP: 3.3V或5V
支持电压3.3V 或 5V
操作温度0°C - +70°C (商用)-40°C - +85°C (延伸型)
储存温度-55°C - +100°C (商用)
湿度相对湿度10% - 90%，无凝结
EDC/ECC增强型Reed-Solomon EDC/ECC逻辑，针对每一512-byte区块数据提供以下的侦测及校正能力：
· 修正两组10-bit符号，包含两个随机位错误· 修正single bursts至11 bits
· 侦测single bursts至31 bits以及double bursts至11 bits
· 侦测4个随机位错误 |

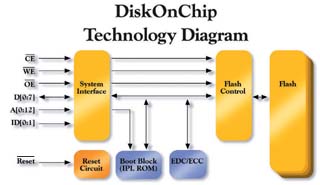

DiskOnChip技术界面图(Technology Diagram)
|
|
M-systems 艾蒙 Disk On Chip
（DOC）

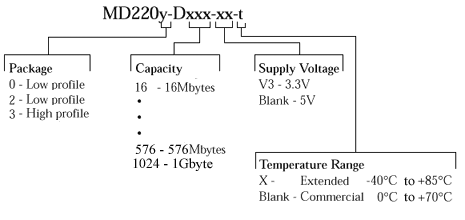

MD2202-DCCC CCC=16M-384M
32PIN DIP LOW PROFILE 0°C to
+70°C
MD2202-DCCC-X CCC=16M-384M
32PIN DIP LOW PROFILE
-40°C to +85°C
MD2203-DCCC CCC=576M-2048M
32PIN DIP HIGH PROFILE 0°C to
+70°C
MD2203-DCCC-X CCC=576M-2048M
32PIN DIP HIGH PROFILE
-40°C to +85°C
M-systems 艾蒙 iDiskOnChip
（iDOC）
MD1150-DCCCC-W-P CCCC=
16,32,64,128,192,256,384,512,768,1024,1536M
Vertical 40PIN
MD1151-DCCCC-W-P CCCC=
16,32,64,128,192,256,384,512,768,1024,1536M
Vertical 44PIN
MD1160-DCCCC-P CCCC=
16,32,64,128,192,256,384,512,768,1024,1536M
Horizontal Left
40PIN
MD1161-DCCCC-P CCCC=
16,32,64,128,192,256,384,512,768,1024,1536M
Horizontal
Left 44PIN
MD1170-DCCCC-P
CCCC=
16,32,64,128,192,256,384,512,768,1024,1536M
Horizontal
Right 40PIN
MD1171-DCCCC-P CCCC=
16,32,64,128,192,256,384,512,768,1024,1536M
Horizontal
Right 44PIN

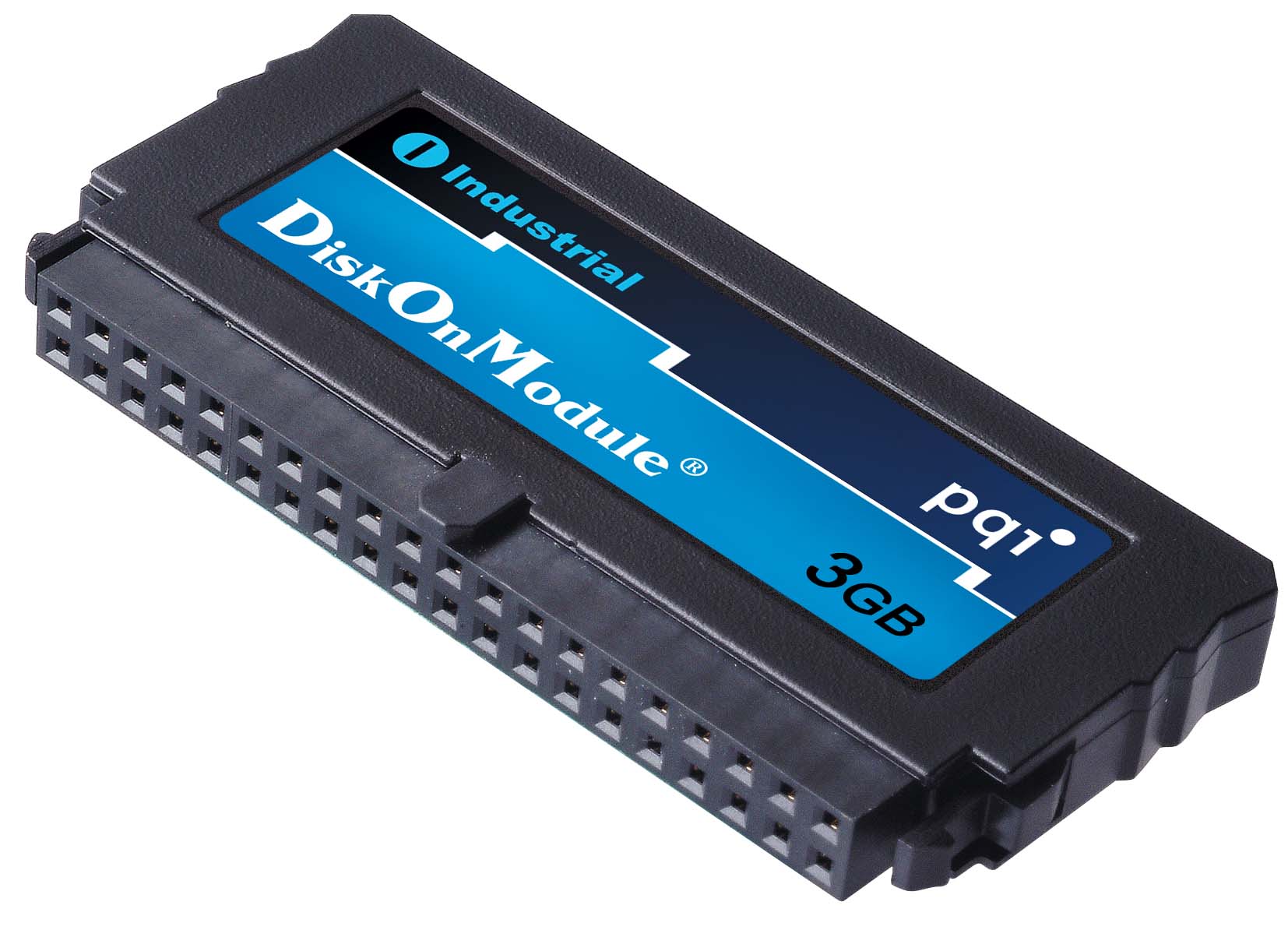

PQI DiskOnModule (DOM)
Industrial DOM019
40PIN IDE Vertical 27.2mmx59.2mmx3.2mm(HxWxT) 16M-1.5G
0°C to +70°C +5V (3.3Voptional)
Industrial DOM419
44PIN IDE Vertical 27.5mmx50.2mmx6.5mm(HxWxT) 16M-1.0G
0°C to +70°C +5V (3.3Voptional)
Industrial DOM030
40PIN IDE Horizontal 30.4mmx55.0mm(HxW) 16M-2.0G
0°C to +70°C +5V (3.3Voptional)
Industrial DOM426
44PIN IDE Vertical 33.0mmx51.2mmx8.5mm(HxWxT) 16M-1.5G
0°C to +70°C +5V (3.3Voptional)
Industrial DOM432
44PIN IDE Horizontal 32.6mmx48.0mm(HxW) 16M-1.5G
0°C to +70°C +5V (3.3Voptional)
公司长备如下现货，特价供应,欢迎联络。 型号 数量
DiskOnChip系列:
MD2202-D16 5K
MD2202-D32 3K
MD2202-D64 2K
MD2202-D128 2K
MD2202-D256 2K
MD5811-d256-V3 5K
MD2811-D32-V3 5K
MD4811-d512-V3 5K
MD2811-D16-V3Q18 5K
MD2202-D16-X 0.5K
MD2202-D32-X 0.5K
MD2202-D64-X 0.5K
DOM系列: MD1150-D32 2K MD1150-D64 2K MD1150-D128 2K MD1150-D256 2K FFD硬盘系列:
SCSI/ULTRA SCSI IDE /IDE PLUS IDE4000
本公司承担技术支持和售后质量服务。长期保持如下型号大量现货库存：m-systems艾蒙doc/dom常备库存 FFD 电子盘
MD2202-D16 MD2202-D16-X MD2202-D32-P MD2202-D32 MD2202-D32-X-P
MD2202-D32-X MD2202-D32-V3-X-P MD2202-D64-P MD2202-D64-X
MD2202-D128-X-P MD2533-D2G-V3Q18-X-A-P FFD-25-IDEP-512-A
FFD-25-IDEP-1024-A FFD-25-IDEP-2048-A FFD-25-IDEP-4096-A
FFD-25-IDEP-6144-B FFD-25-IDEP-8192-B FFD-25-IDEP-10240-B
FFD-25-IDEP-12288-B FFD-25-IDEP-16384-C FFD-25-IDEP-20480-C
FFD-25-IDEP-28672-D FFD-25-IDEP-40960-F IDE-4K-25-128 IDE-4K-25-256
IDE-4K-25-512 IDE-4K-25-1024 IDE-4K-25-2048 IDE-4K-25-3072
FFD-25-UATA-1024-A FFD-25-UATA-2048-A FFD-25-UATA-4096-A
FFD-25-UATA-8192-A FFD-25-UATA-16384-A FFD-25-UATA-24576-B
FFD-25-UATA-32768-B FFD-25-UATA-40960-B FFD-25-UATA-49152-B
FFD-25-UATA-57344-B FFD-25-UATA-65536-B FFD-25-UATA-73728-C
FFD-25-SATA-1-T-A FFD-25-SATA-2-T-A FFD-25-SATA-4-T-A
FFD-25-SATA-8-T-A FFD-25-SATA-16-T-A FFD-25-SATA-24-T-B
FFD-25-SATA-32-T-B FFD-25-SATA-40-T-B FFD-25-SATA-48-T-B
FFD-25-SATA-56-T-B FFD-25-SATA-64-T-B FFD-25-SATA-72-T-C
FFD-25-SATA-80-T-C FFD-25-SATA-88-T-C FFD-25-SATA-96-T-C
FFD-25-SATA-104-T-C FFD-25-SATA-112-T-C FFD-25-SATA-120-T-D
FFD-25-SATA-128-T-D FFD35-U3S-1-T-PXX FFD35-U3S-2-T-PXX
FFD35-U3S-4-T-PXX FFD35-U3S-8-T-PXX FFD35-U3S-16-T-PXX
FFD35-U3S-24-T-PXX FFD35-U3S-32-T-PXX FFD35-U3S-40-T-PXX
FFD35-U3S-48-T-PXX FFD35-U3S-56-T-PXX FFD35-U3S-64-T-PXX
FFD35-U3S-72-T-PXX FFD35-U3S-80-T-PXX FFD35-U3S-96-T-PXX
FFD35-U3S-104-T-PXX FFD35-U3S-112-T-PXX FFD35-U3S-120-T-PXX
FFD35-U3S-128-T-PXX FFD35-U3S-136-T-PXX FFD35-U3S-144-T-PXX
FFD35-U3S-152-T-PXX FFD35-U3S-160-T-PXX FFD35-U3S-176-T-PXX
FFD35-U3S-192-T-PXX FFD35-U3S-208-T-PXX FFD35-U3S-224-T-PXX
FFD35-U3S-240-T-PXX FFD35US-512-P50 FFD35US-1024-P50
FFD35US-2048-P50 FFD35US-3072-P50 FFD35US-4096-P50 FFD35US-6144-P50
FFD35US-7168-P50 FFD35US-8192-P50 FFD35US-10240-P50
FFD35US-12288-P50 FFD35US-14336-P50 FFD35US-16384-P50
FFD35US-18432-P50 FFD35US-30720-P50 FFD35US-32768-P50
FFD35US-34816-P50 MD1151-D32 MD1150-D32 MD1151-D64 MD1150-D64
MD1151-D128 MD1150-D128 MD1151-D256 MD1150-D256 MD1151-D512
MD1150-D512 MD1151-D1024 MD1150-D2048 MD116x/7x-D32 MD116x/7x-D64
MD116x/7x-D128 MD116x/7x-D256 MD116x/7x-D512 MD116x/7x-D768
MD116x/7x-D1024 NXP/PHILIPS AUDIO AMPLIFIER VIDEO DECODER TUNER I2C
BUS LCD DRIVER TDA1316AL/IHP TU1216L/IHP FQ1216ME/IH-3 FQ1216ME/IH-5
FQ1236/FH-3 FQ1236/FH-5 TDA6500TT TDA6651TT TDA9801T TSA5059T
TDA8060TS TDA9886TS MD2202-D24 MD2200-D24-V3 MD2200-D24-V3-X
MD2200-D24-X MD2202-D128
MD2202-D128-V3 MD2202-D128-V3-X MD2202-D128-X MD2202-D16
MD2202-D16-V3 MD2202-D16-V3-X MD2202-D16-X
MD2202-D192 MD2202-D192-V3 MD2202-D192-V3-X MD2202-D192-X
MD2202-D256 MD2202-D256-V3 MD2202-D256-V3-X
MD2202-D256-X MD2202-D32 MD2202-D32-V3 MD2202-D32-V3-X MD2202-D32-X
MD2202-D84 MD2202-D84-V3
MD2202-D84-V3-X MD2202-D84-X MD2202-D64 MD2202-D64-V3
MD2202-D64-V3-X MD2202-D64-X MD2202-D96
MD2202-D96-V3 MD2202-D96-V3-X MD2202-D96-X MD2203-D1204
MD2203-D1204-V3 MD2203-D1204-V3-X
MD2203-D1204-X MD2203-D576 MD2203-D576-V3 MD2203-D576-V3-X
MD2203-D576-X MD2203-D768 MD2203-D768-V3
MD2203-D768-V3-X MD2203-D768-X MD2240-D112MB MD2240-D128MB
MD2240-D160MB MD2240-D16MB MD2240-D192MB
MD2240-D224MB MD2240-D256MB MD2240-D32MB MD2240-D48MB MD2240-D64MB
MD2240-D80MB MD2240-D96MB
MD2241-D128-V3 MD2241-D128-V3-X MD2241-D32-V3 MD2241-D32-V3-X
MD2241-D64-V3 MD2241-D64-V3-X
MD2241-D96-V3 MD2241-D96-V3-X MD2800-D08(DIP) MD2802-D08
MD2810-D08(TSOP) MD3331-D16-V3Q18
MD3331-D16-V3Q18-X MD3331-D32-V3Q18 MD3331-D32-V3Q18-Q MD3331-D64-V3
MD3331-D64-V3-X
MD3831-D32-V3 MD3831-D32-V3-X MD3831-D64-V3 MD3831-D64-V3-X |
|
|
|
