									- WLCSP MMICs for Micro/Millimeter-wave Applications
														SEI/SEDI proposes the
														WLCSP (Wafer
														Level
														Chip
														Scale
														Package)
														technology for the
														solution of the next
														generation device.














													This technology achieved a very excellent frequency performance by uniting with 3- D MMIC technology, and can apply from C to E-band applications.
The WLCSP chip is the flip chip form with the solder ball and it is mountable in the SMT production line.
It is unnecessary the wire bonding, it can achieve high mass productivity up to high frequency range.
Features
- Low Cost Surface Mount Type Device
- Flip
																	Chip Form
																	with Solder
																	Ball
 Solder Ball Diameter: 165um
 Solder Ball Pitch: 400um
- Applicable from C to E-Band application.
- Small Size
- Highly Integrated
- Chip Level Protection against Humidity
- RoHS Compliance
-
																	 Outline
																	of WLCSP
																	MMIC Outline
																	of WLCSP
																	MMIC
-
																	 SMM5139XZ SMM5139XZ

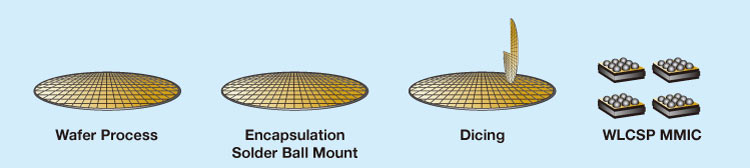

♦ Process

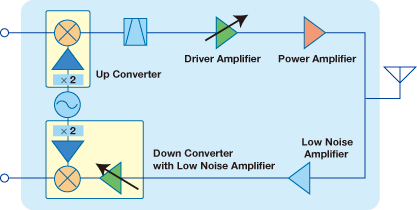

Product Lineup
| 13/15GHz | 18/23GHz | 24/30GHz | |
|---|---|---|---|
| Low Noise Amp | SMM5722XZ | SMM5723XZ* | SMM5724XZ* |
| Up Converter | SMM5138XZ SMM5145XZ | SMM5141XZ* | SMM5143XZ* |
| Down Converter | SMM5139XZ SMM5146XZ | SMM5142XZ | SMM5144XZ* |
- * Under Development

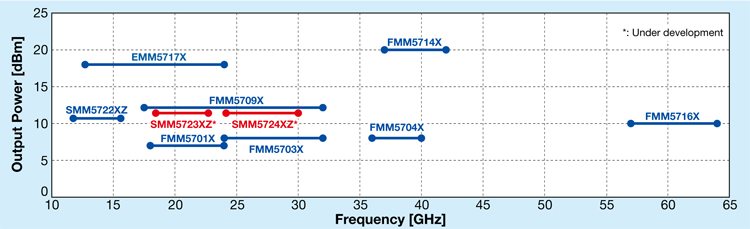

- Selection Guide

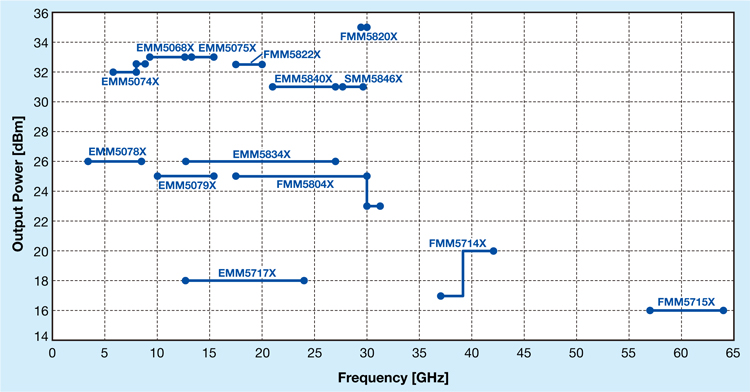

Power Amplifier MMIC Lineup (Package)

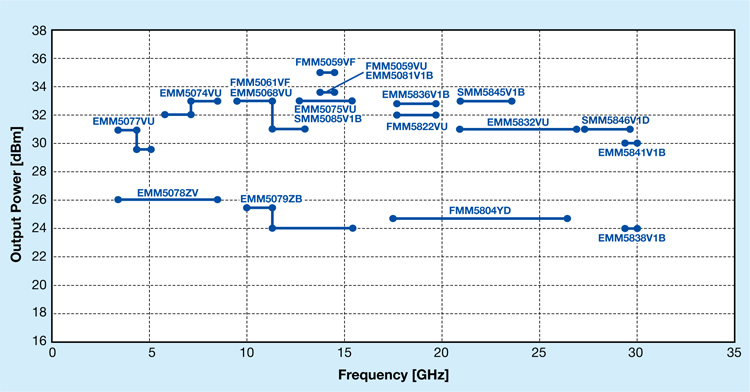

Power Amplifier MMIC Lineup (Chip)

Low Noise Amplifier MMIC Lineup
