商运达代理经销晶振/晶体振荡器/温补晶振/射频微波晶振/特殊晶振/VCO/压控振荡器/恒温晶振

晶体滤波器（Monolithic Crystal Filters）
Standard Monolithic Crystal Filter
Part Number
Description
　MS1 　Surface-mount ceramic package, 7×5×1.4mm
　MS2 　Surface-mount ceramic package, 4 Poles, 7×5×0.9mm
　MUHF 　MCF(45/55/90MHz), Mobile radio applications
　M12K 　MCF(10.7/21.4 MHz), 12.5kHz Channel spacing
　M20K 　MCF(10.7/21.4 MHz), 20kHz Channel spacing
　M25K 　MCF(10.7/21.4 MHz), 25kHz Channel spacing
　M50K 　MCF(10.7/21.4 MHz), 50kHz Channel spacing
General Monolithic Crystal Filter

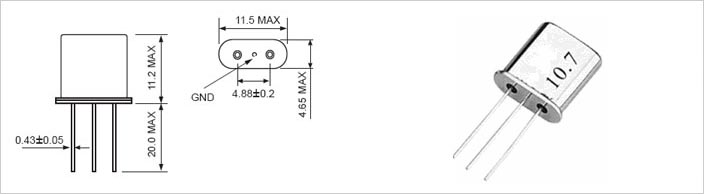

HC-49U/HC-49T TYPE

Part Number Nominal Frequency MHz Pass Band kHz/dB Stop Band kHz/dB Ripple dB Insertion Loss dB Terminal Impedance Ohm/pF Operation Temperature ℃ Oscillation Mode Pole
10M07A1 10.7 ±3.75/3 ±18/20 0.5 2 1800//5 -20 - +70 Fund 2
10M07A2 10.7 ±3.75/3 ±20/20 0.5 2.0 1800//5 -20 - +70 Fund 2
10M12A 10.7 ±6.00/3 ±20/18 0.5 2.0 3000//3 -20 - +70 Fund 2
10M15A 10.7 ±7.50/3 ±25/18 0.5 2.0 3000//2 -20 - +70 Fund 2
10M20A 10.7 ±10.0/3 ±35/18 0.5 2.0 2k-3k -20 - +70 Fund 2
10M30A 10.7 ±15.0/3 ±50/18 0.5 2.0 5500//-1 -20 - +70 Fund 4
10M07B1 10.7 ±3.75/3 ±14/40 1.0 2.5 1800//4 -20 - +70 Fund 4
10M07B2 10.7 ±3.75/3 ±15/40 1.0 2.5 1500//4 -20 - +70 Fund 4
10M12B 10.7 ±6.00/3 ±20/40 1.0 2.5 2800//1 -20 - +70 Fund 4
10M15B1 10.7 ±7.50/3 ±25/40 1.0 2.5 3000//1 -20 - +70 Fund 4
10M15B2 10.7 ±7.50/3 ±25/40 1.0 2.0 3000//2 -20 - +70 Fund 4
10M15B3 10.7 ±7.50/3 ±27/40 1.5 2.5 2k-3k -20 - +70 Fund 4
10M20B 10.7 ±10.0/3 ±34/40 2.0 2.5 2k-3k -20 - +70 Fund 4
10M30B 10.7 ±15.0/3 ±50/40 1.0 2.5 5500//-1 -20 - +70 Fund 4

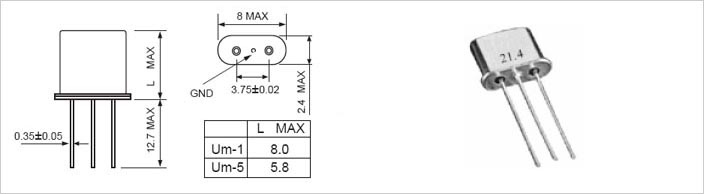

UM-1/UM-5 TYPE
　
Part Number Nominal Frequency MHz Pass Band kHz/dB Stop Band kHz/dB Ripple dB Insertion Loss dB Terminal Impedance Ohm/pF Operation Temperature ℃ Oscillation Mode Pole
21M07A 21.4 ±3.75/3 ±14/18 0.5 1.5 850//7 -20 - +70 Fund 2
21M09A 21.4 ±4.50/3 ±12.5/14 0.5 1.5 850//7 -20 - +70 Fund 2
21M12A 21.4 ±6.00/3 ±20/15 0.5 1.5 1200//2.5 -20 - +70 Fund 2
21M15A1 21.4 ±7.50/3 ±25/18 0.5 1.5 1500//3 -20 - +70 Fund 2
21M15A2 21.4 ±7.50/3 ±30/18 0.5 2.0 1500//3 -20 - +70 Fund 2
21M15A3 21.4 ±7.50/3 ±30/18 1.0 2.0 1500//2 -20 - +70 Fund 2
21M20A 21.4 ±10.0/3 ±25/10 0.5 1.5 1800//1.5 -20 - +70 Fund 2
21M30A 21.4 ±15.0/3 ±45/15 0.5 1.5 3000//0.5 -20 - +70 Fund 2
21P07A 21.6 ±3.75/3 ±14/18 0.5 1.5 850//5 -20 - +70 Fund 2
21P12A 21.6 ±6.00/3 ±20/15 0.5 1.5 1200//2.5 -20 - +70 Fund 2
21P15A 21.6 ±7.50/3 ±25/18 0.5 1.5 1500//3 -20 - +70 Fund 2
21T07A1 21.7 ±3.75/3 ±14/18 0.5 1.5 850//5 -20 - +70 Fund 2
21T07A2 21.7 ±3.75/3 ±15/18 0.5 1.5 850//6 -20 - +70 Fund 2
21T09A 21.7 ±4.50/3 ±12.5/14 0.5 1.5 1500//4 -20 - +70 Fund 2
21T12A 21.7 ±6.00/3 ±20/15 0.5 1.5 1200//2.5 -20 - +70 Fund 2
21T15A 21.7 ±7.50/3 ±25/18 0.5 1.5 1500//3 -20 - +70 Fund 2
21T20A 21.7 ±10.0/3 ±25/10 0.5 1.5 1800//1.5 -20 - +70 Fund 2
21T30A 21.7 ±15.0/3 ±45/15 0.5 1.5 3000/0.5 -20 - +70 Fund 2
21S07A 21.7 ±3.75/3 ±25/18 0.5 1.5 1500//3 -20 - +70 Fund 2
45M07A 45.0 ±3.50/3 ±12.5/10 0.5 1.5 510//5.5 -20 - +70 3rd 2
45M15A 45.0 ±7.50/3 ±25/14 0.5 1.5 550//3 -20 - +70 3rd 2
45M30A 45.0 ±15.0/3 ±50/10 0.5 1.5 510//5.5 -20 - +70 3rd 2
55M30A 55.0 ±15.0/3 ±50/10 1.0 2.0 1200//1.5 -20 - +70 3rd 2
90M20A 90.0 ±10.0/3 ±30/15 1.0 2.5 2500//-1.0 -20 - +70 5th 2

Part Number Nominal Frequency MHz Pass Band kHz/dB Stop Band kHz/dB Ripple dB Insertion Loss dB Terminal Impedance Ohm/pF Operation Temperature ℃ Oscillation Mode Pole
21M07B 21.4 ±3.75/3 ±14/40 0.5 2.0 850//5 -20 - +70 Fund 4
21M08B 21.4 ±4.00/3 ±16/40 0.5 2.0 1000//4 -20 - +70 Fund 4
21M12B 21.4 ±6.00/3 ±20/40 0.5 2.0 1200//2.5 -20 - +70 Fund 4
21M15B1 21.4 ±7.50/3 ±25/40 0.5 2.0 1500//2 -20 - +70 Fund 4
21M15B2 21.4 ±7.50/3 ±30/40 0.5 2.0 1500//2 -20 - +70 Fund 4
21M15B3 21.4 ±7.50/3 ±30/40 1.0 3.0 1500//1 -20 - +70 Fund 4
21M30B 21.4 ±15.0/3 ±50/40 0.5 2.0 3300//0.5 -20 - +70 Fund 4
21P07B 21.6 ±3.75/3 ±14/40 0.5 2.0 850//5 -20 - +70 Fund 4
21P12B 21.6 ±6.00/3 ±20/40 0.5 2.0 1200//2.5 -20 - +70 Fund 4
21P15B 21.6 ±7.50/3 ±25/40 0.5 2.0 1500//2 -20 - +70 Fund 4
21T07B 21.7 ±3.75/3 ±14/40 0.5 2.0 850//5 -20 - +70 Fund 4
21T12B 21.7 ±6.00/3 ±20/40 0.5 2.0 1200//2.5 -20 - +70 Fund 4
21T15B 21.7 ±7.50/3 ±25/40 0.5 2.0 1500//2 -20 - +70 Fund 4
21T30B 21.7 ±15.0/3 ±50/40 0.5 2.5 3000//0.5 -20 - +70 Fund 4
45M15B 45.0 ±7.50/3 ±25/40 0.5 2.5 650//3 -20 - +70 3rd 4
45M30B 45.0 ±15.0/3 ±40/30 0.5 2.5 800//1.5 -20 - +70 3rd 4
55M30B 55.0 ±15.0/3 ±50/30 1.0 2.5 1200//0.7 -20 - +70 3rd 4
90M20B 90.0 ±10.0/3 ±30/30 1.0 4.0 2500//-1.0 -20 - +70 5th 4
S and L TYPE

Part Number Nominal Frequency MHz Pass Band kHz/dB Stop Band kHz/dB Ripple dB Insertion Loss dB Guranteed Attenuation kHz/dB Terminal Impedance Ohm/pF Pole Type
21M07C 21.4 ±3.75/3 ±8.75/45 ±12.5/65 2.0 3.0 (12.5~300)/65 850//5 6 S-1
21M07D 21.4 ±3.75/3 ±9.00/65 ±12.5/90 2.0 4.0 (12.5~300)/90 850//5 8 S-1
21M07E 21.4 ±3.75/3 ±8.75/75 ±10.5/90 2.0 4.5 (12.5~300)/90 850//5 10 S-2
21M12C 21.4 ±6.00/3 ±14/45 ±20/65 2.0 3.0 (20~300)/95 1200//2.5 6 S-1
21M12D 21.4 ±6.00/3 ±14/65 ±20/90 2.0 4.0 (20~300)/90 1200//2.5 8 S-1
21M15C 21.4 ±7.50/3 ±17.5/45 ±25/65 2.0 2.5 (25~300)/65 1500//2.0 6 S-1
21M15D 21.4 ±7.50/3 ±17.5/65 ±25/90 2.0 3.0 (25~300)/90 1500//2.0 8 S-1
21M15E 21.4 ±7.50/3 ±17.5/75 ±20/90 2.0 4.0 (18~300)/90 1500//2.0 10 S-2
21M30C 21.4 ±15.0/3 ±25.0/80 ±50/65 2.0 2.5 (50~300)/65 2200/0.5 6 S-1
21M20D 21.4 ±10.0/3 ±8.75/45 ±30/90 2.0 4.0 (30~300)/90 1800//0.5 8 S-1
10M07C 10.7 ±3.75/3 ±8.75/45 ±12.5/65 2.0 3.5 (12.5~300)/65 1800//3.5 6 L-1
10M07D 10.7 ±3.75/3 ±8.75/65 ±12.5/65 2.0 4.0 (12.5~300)/90 1800//3.5 8 L-2
10M15C 10.7 ±7.50/3 ±17.5/45 ±25/65 2.0 3.0 (25~300)/65 3000//1.5 6 L-1
10M15D 10.7 ±7.50/3 ±17.5/70 ±25/90 2.0 4.0 (25~300)/90 3000//1.5 8 L-2
10M15E 10.7 ±7.50/3 ±15.0/75 ±20/90 2.0 4.5 (20~300)/90 3000//1.5 10 L-3
10M30C 10.7 ±15.0/3 ±45.0/65 2.0 3.0 (45~300)/60 5500//-1.0 6 L-1

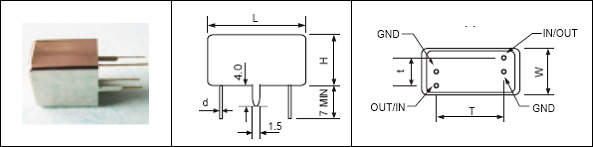

DIMENSIONS CODE (Unit: mm)
TYPE L W H T t D
S-1 11.0 8.5 11.5 7.4 4.0 0.30
S-2 13.4 8.5 11.5 9.8 4.0 0.30
L-1 15.0 12.0 15.0 9.0 5.0 0.43
L-2 18.5 12.0 15.0 13.4 5.0 0.43

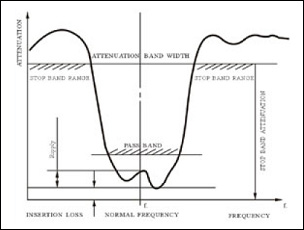

PASS-BAND FILTER SPEC-DRAWING

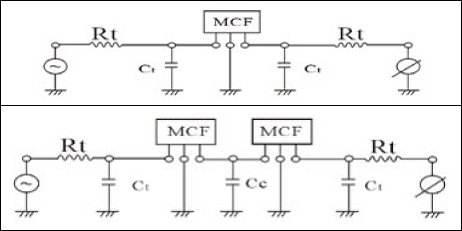

TEST CIRCUIT

　

晶体滤波器（Monolithic Crystal Filters）
HC-49U/HC-49T TYPE
Part Number
Nominal Frequency MHz
Pass Band kHz/dB
Stop Band kHz/dB
Ripple dB
Insertion Loss dB
Terminal Impedance Ohm/pF
Operation Temperature ℃
Oscillation Mode
Pole
10M07A1 10.7 ±3.75/3 ±18/20 0.5 2 1800//5 -20 to +70 Fund 2
10M07A2 10.7 ±3.75/3 ±20/20 0.5 2.0 1800//5 -20 to +70 Fund 2
10M12A 10.7 ±6.00/3 ±20/18 0.5 2.0 3000//3 -20 to +70 Fund 2
10M15A 10.7 ±7.50/3 ±25/18 0.5 2.0 3000//2 -20 to +70 Fund 2
10M20A 10.7 ±10.0/3 ±35/18 0.5 2.0 2k-3k -20 to +70 Fund 2
10M30A 10.7 ±15.0/3 ±50/18 0.5 2.0 5500//1 -20 to +70 Fund 4
10M07B1 10.7 ±3.75/3 ±14/40 1.0 2.5 1800//4 -20 to +70 Fund 4
10M07B2 10.7 ±3.75/3 ±15/40 1.0 2.5 1500//4 -20 to +70 Fund 4
10M12B 10.7 ±6.00/3 ±20/40 1.0 2.5 2800//1 -20 to +70 Fund 4
10M15B1 10.7 ±7.50/3 ±25/40 1.0 2.5 3000//1 -20 to +70 Fund 4
10M15B2 10.7 ±7.50/3 ±25/40 1.0 2.0 3000//2 -20 to +70 Fund 4
10M15B3 10.7 ±7.50/3 ±27/40 1.5 2.5 2k-3k -20 to +70 Fund 4
10M20B 10.7 ±10.0/3 ±34/40 2.0 2.5 2k-3k -20 to +70 Fund 4
10M30B 10.7 ±15.0/3 ±50/40 1.0 2.5 5500//1 -20 to +70 Fund 4
UM-1/UM-5 TYPE
Part Number
Nominal Frequency MHz
Pass Band kHz/dB
Stop Band kHz/dB
Ripple dB
Insertion Loss dB
Terminal Impedance Ohm/pF
Operation Temperature ℃
Oscillation Mode
Pole
21M07A 21.4 ±3.75/3 ±14/18 0.5 1.5 850//7 -20 to +70 Fund 2
21M09A 21.4 ±4.50/3 ±12.5/14 0.5 1.5 850//7 -20 to +70 Fund 2
21M12A 21.4 ±6.00/3 ±20/15 0.5 1.5 1200//2.5 -20 to +70 Fund 2
21M15A1 21.4 ±7.50/3 ±25/18 0.5 1.5 1500//3 -20 to +70 Fund 2
21M15A2 21.4 ±7.50/3 ±30/18 0.5 2.0 1500//3 -20 to +70 Fund 2
21M15A3 21.4 ±7.50/3 ±30/18 1.0 2.0 1500//2 -20 to +70 Fund 2
21M20A 21.4 ±10.0/3 ±25/10 0.5 1.5 1800//1.5 -20 to +70 Fund 2
21M30A 21.4 ±15.0/3 ±45/15 0.5 1.5 3000//0.5 -20 to +70 Fund 2
21P07A 21.6 ±3.75/3 ±14/18 0.5 1.5 850//5 -20 to +70 Fund 2
21P12A 21.6 ±6.00/3 ±20/15 0.5 1.5 1200//2.5 -20 to +70 Fund 2
21P15A 21.6 ±7.50/3 ±25/18 0.5 1.5 1500//3 -20 to +70 Fund 2
21T07A1 21.7 ±3.75/3 ±14/18 0.5 1.5 850//5 -20 to +70 Fund 2
21T07A2 21.7 ±3.75/3 ±15/18 0.5 1.5 850//6 -20 to +70 Fund 2
21T09A 21.7 ±4.50/3 ±12.5/14 0.5 1.5 1500//4 -20 to +70 Fund 2
21T12A 21.7 ±6.00/3 ±20/15 0.5 1.5 1200//2.5 -20 to +70 Fund 2
21T15A 21.7 ±7.50/3 ±25/18 0.5 1.5 1500//3 -20 to +70 Fund 2
21T20A 21.7 ±10.0/3 ±25/10 0.5 1.5 1800//1.5 -20 to +70 Fund 2
21T30A 21.7 ±15.0/3 ±45/15 0.5 1.5 3000/0.5 -20 to +70 Fund 2
21S07A 21.7 ±3.75/3 ±25/18 0.5 1.5 1500//3 -20 to +70 Fund 2
45M07A 45.0 ±3.50/3 ±12.5/10 0.5 1.5 510//5.5 -20 to +70 3rd 2
45M15A 45.0 ±7.50/3 ±25/14 0.5 1.5 550//3 -20 to +70 3rd 2
45M30A 45.0 ±15.0/3 ±50/10 0.5 1.5 510//5.5 -20 to +70 3rd 2
55M30A 55.0 ±15.0/3 ±50/10 1.0 2.0 1200//1.5 -20 to +70 3rd 2
90M20A 90.0 ±10.0/3 ±30/15 1.0 2.5 2500//1.0 -20 to +70 5th 2

Part Number
Nominal Frequency MHz
Pass Band kHz/dB
Stop Band kHz/dB
Ripple dB
Insertion Loss dB
Terminal Impedance Ohm/pF
Operation Temperature ℃
Oscillation Mode
Pole
21M07B 21.4 ±3.75/3 ±14/40 0.5 2.0 850//5 -20 to +70 Fund 4
21M08B 21.4 ±4.00/3 ±16/40 0.5 2.0 1000//4 -20 to +70 Fund 4
21M12B 21.4 ±6.00/3 ±20/40 0.5 2.0 1200//2.5 -20 to +70 Fund 4
21M15B1 21.4 ±7.50/3 ±25/40 0.5 2.0 1500//2 -20 to +70 Fund 4
21M15B2 21.4 ±7.50/3 ±30/40 0.5 2.0 1500//2 -20 to +70 Fund 4
21M15B3 21.4 ±7.50/3 ±30/40 1.0 3.0 1500//1 -20 to +70 Fund 4
21M30B 21.4 ±15.0/3 ±50/40 0.5 2.0 3300//0.5 -20 to +70 Fund 4
21P07B 21.6 ±3.75/3 ±14/40 0.5 2.0 850//5 -20 to +70 Fund 4
21P12B 21.6 ±6.00/3 ±20/40 0.5 2.0 1200//2.5 -20 to +70 Fund 4
21P15B 21.6 ±7.50/3 ±25/40 0.5 2.0 1500//2 -20 to +70 Fund 4
21T07B 21.7 ±3.75/3 ±14/40 0.5 2.0 850//5 -20 to +70 Fund 4
21T12B 21.7 ±6.00/3 ±20/40 0.5 2.0 1200//2.5 -20 to +70 Fund 4
21T15B 21.7 ±7.50/3 ±25/40 0.5 2.0 1500//2 -20 to +70 Fund 4
21T30B 21.7 ±15.0/3 ±50/40 0.5 2.5 3000/0.5 -20 to +70 Fund 4
45M15B 45.0 ±7.50/3 ±25/40 0.5 2.5 650//3 -20 to +70 3rd 4
45M30B 45.0 ±15.0/3 ±40/30 0.5 2.5 800//1.5 -20 to +70 3rd 4
55M30B 55.0 ±15.0/3 ±50/30 1.0 2.5 1200//0.7 -20 to +70 3rd 4
90M20B 90.0 ±10.0/3 ±30/30 1.0 4.0 2500//1.0 -20 to +70 5th 4
S and L TYPE
Part Number
Nominal Frequency MHz
Pass Band kHz/dB
Stop Band kHz/dB
　
Ripple dB
Insertion Loss dB
Guranted Attenuation kHz/dB
Terminal Impedance Ohm/pF
Pole
Type
21M07C 21.4 ±3.75/3 ±8.75/45 ±12.5/65 2.0 3.0 (12.5~300)/65 850//5 6 S-1
21M07D 21.4 ±3.75/3 ±9.00/65 ±12.5/90 2.0 4.0 (12.5~300)/90 850//5 8 S-1
21M07E 21.4 ±3.75/3 ±8.75/75 ±10.5/90 2.0 4.5 (12.5~300)/90 850//5 10 S-2
21M12C 21.4 ±6.00/3 ±14/45 ±20/65 2.0 3.0 (20~300)/95 1200//2.5 6 S-1
21M12D 21.4 ±6.00/3 ±14/65 ±20/90 2.0 4.0 (20~300)/90 1200//2.5 8 S-1
21M15C 21.4 ±7.50/3 ±17.5/45 ±25/65 2.0 2.5 (25~300)/65 1500//2.0 6 S-1
21M15D 21.4 ±7.50/3 ±17.5/65 ±25/90 2.0 3.0 (25~300)/90 1500//2.0 8 S-1
21M15E 21.4 ±7.50/3 ±17.5/75 ±20/90 2.0 4.0 (18~300)/90 1500//2.0 10 S-2
21M30C 21.4 ±15.0/3 ±25.0/80 ±50/65 2.0 2.5 (50~300)/65 2200/0.5 6 S-1
21M20D 21.4 ±10.0/3 ±8.75/45 ±30/90 2.0 4.0 (30~300)/90 1800//0.5 8 S-1
10M07C 10.7 ±3.75/3 ±8.75/45 ±12.5/65 2.0 3.5 (12.5~300)/65 1800//3.5 6 L-1
10M07D 10.7 ±3.75/3 ±8.75/65 ±12.5/65 2.0 4.0 (12.5~300)/90 1800//3.5 8 L-2
10M15C 10.7 ±7.50/3 ±17.5/45 ±25/65 2.0 3.0 (25~300)/65 3000//1.5 6 L-1
10M15D 10.7 ±7.50/3 ±17.5/70 ±25/90 2.0 4.0 (25~300)/90 3000//1.5 8 L-2
10M15E 10.7 ±7.50/3 ±15.0/75 ±20/90 2.0 4.5 (20~300)/90 3000//1.5 10 L-3
10M30C 10.7 ±15.0/3 ±45.0/65 2.0 3.0 (45~300)/60 5500//1.0 6 L-1
DIMENSIONS CODE (Unit: mm)
TYPE L W H T t D
S-1 11.0 8.5 11.5 7.4 4.0 0.30
S-2 13.4 8.5 11.5 9.8 4.0 0.30
L-1 15.0 12.0 15.0 9.0 5.0 0.43
L-2 18.5 12.0 15.0 13.4 5.0 0.43
PASS-BAND FILTER SPEC-DRAWING
　
TEST CIRCUIT
　


　

欢迎来电洽购我司产品或索取免费详细资料、设计指南和光盘

传感器专家仪器仪表世界网：HTTP：//WWW.SENSOR-IC.COM/

智能工控公共安全网：HTTP：//WWW.PC-PS.NET/

消费电子专用电路网：HTTP://WWW.SUNSTARE.COM/

地址： 深圳市福田区福华路福庆街鸿图大厦1602室    E-MAIL：szss20@163.com

电话：0755-83397033 83396822

传真：0755-83376182  83376182   邮编：518033  手机：(0)13902971329

E-MAIL:xjr5@163.com
  MSN: SUNS8888@hotmail.com
  QQ: 195847376
  技术支持: 0755-83394033 1350156837

深圳展销部：深圳华强北路赛格电子市场2583号  TEL/FAX：0755-83665529  13823648918

北京分公司：北京海淀区知春路132号中发电子大厦3097号

TEL：4006579498  18927445855  13823791822  FAX：010-62543996

上海分公司：上海市北京东路668号上海賽格电子市场地下一层D25号

TEL：4006571586  56703037  13823676822  FAX：021-56703037

西安分公司：西安高新开发区20所(中国电子科技集团导航技术研究所)

　　　　　      西安劳动南路88号电子商城二楼D23号

TEL：4006572198  13072977981  FAX:029-88789382

Copyright 2003 本网站由【商运达实业】制作维护
